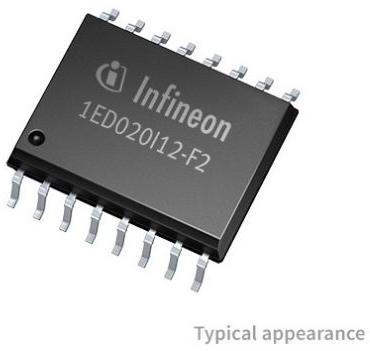

Infineon Technologies AG1ED020I12F2XUMA1Gate and Power Drivers
Driver 2A 1-OUT High Side Inv/Non-Inv 16-Pin DSO T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.90 | |
| Automotive | No |
| PPAP | No |
| High Side | |
| Inverting|Non-Inverting | |
| 1 | |
| IGBT|MOSFET | |
| 1 | |
| 400(Typ) | |
| 350(Typ) | |
| 170(Typ) | |
| CMOS|5V | |
| -12|4.5|13 | |
| 20|0|5.5 | |
| 1.5(Max) | |
| 3.5(Min) | |
| 2(Typ) | |
| 700 | |
| -40 | |
| 105 | |
| Under Voltage Lockout | |
| No | |
| Tape and Reel | |
| Mounting | Surface Mount |
| Package Height | 1.45 |
| Package Width | 4 |
| Package Length | 10 |
| PCB changed | 16 |
| Standard Package Name | SO |
| Supplier Package | DSO |
| 16 | |
| Lead Shape | Gull-wing |
| EDA / CAD Models |
