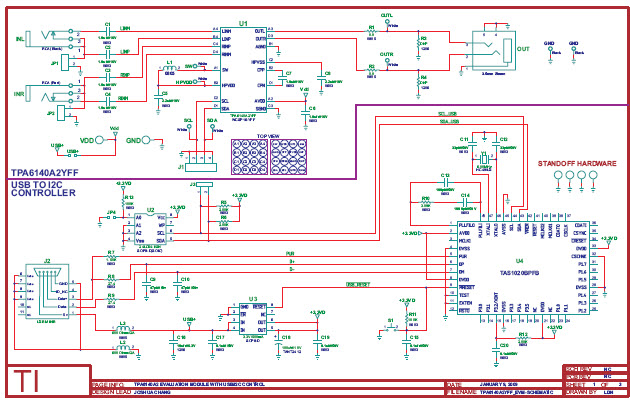

TPA6140A2YFF Audio Power Amplifier Evaluation Module
Diseño de referencia usando la pieza TPA6140A2YFF de Texas Instruments
이미지
1 / 1
Documentos asociados
Para productos finales
- CD/DVD Player
- Cellular Phone
- MP3 Player
- Portable Media Player
- Smart Phone
Descripción
- TPA6140A2YFFEVM allows the engineer to evaluate the TPA6140A2, a stereo Class-G Direct Path (capacitor-free) HeadPhone amplifier in a WCSP package. The TPA6140A2 has extremely low power consumption that enables much longer battery life in portable applications
Características clave
-
Number of Channels2
-
Output Power0.025 W
-
Amplifier TypeClass-G
Piezas destacadas (7)
| Número de pieza | Fabricante | Tipo | Descripción | |||
|---|---|---|---|---|---|---|
|
TPS77533DR | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.5A 8-Pin SOIC T/R | AÑADIR AL CARRITO | |
|
24LC64-I/SNG | Microchip Technology | EEPROM | EEPROM Serial-I2C 64K-bit 8K x 8 3.3V/5V 8-Pin SOIC N Tube | AÑADIR AL CARRITO | |
|
|
TPS77533D | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.5A 8-Pin SOIC Tube | AÑADIR AL CARRITO | |
|
|
24LC64-I/SN | Microchip Technology | EEPROM | EEPROM Serial-I2C 64K-bit 8K x 8 3.3V/5V 8-Pin SOIC N Tube | AÑADIR AL CARRITO | |
|
ECS-60-32-5PXDN-TR | ECS, Inc. International | Crystals | Crystal 6MHz ±30ppm (Tol) ±100ppm (Stability) 32pF FUND 70Ohm 2-Pin SMD T/R | AÑADIR AL CARRITO | |
|
TPA6140A2YFFT | Texas Instruments | Audio Amplifiers | Audio Amp Headphone 2-CH Stereo 0.032W Class-G 16-Pin DSBGA T/R | AÑADIR AL CARRITO | |
|
|
TPA6140A2YFFR | Texas Instruments | Audio Amplifiers | Audio Amp Headphone 2-CH Stereo 0.032W Class-G 16-Pin DSBGA T/R | AÑADIR AL CARRITO | |
