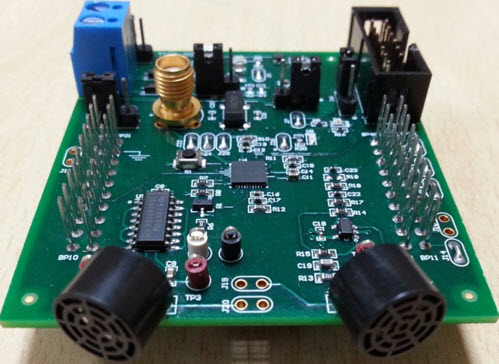

TIDA-00462, Ultrasonic Distance Measurement BoosterPack Reference Design
Diseño de referencia usando la pieza MSP430F5172IRSB de Texas Instruments
이미지
1 / 4
Para productos finales
- Building Automation
- Factory Automation
- Portable Instrumentation
- Process Control
- Sensors
- Transmitter
Descripción

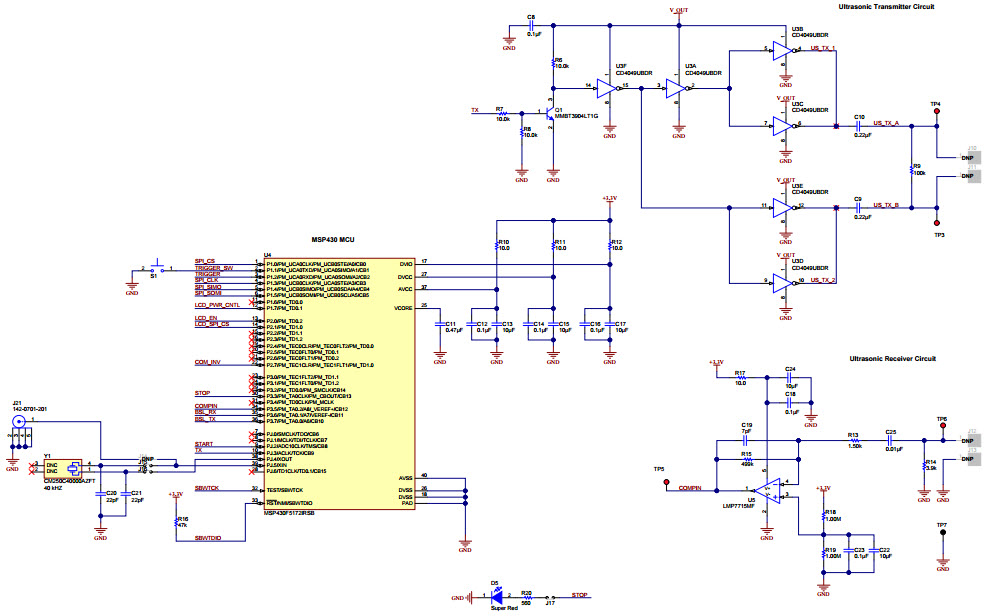

- TIDA-00462, Ultrasonic Distance Measurement BoosterPack Reference Design can measure the distance up to 99 inches with an accuracy of ±1.5 inches. The scope of this design guide is to give system designers a head-start in integrating industrial ultra-low-power MCU, analog signal conditioning and power management technologies into their end-equipment systems. This design guide describes the principle of operation and basic design process for a low cost distance measuring system based on ultrasonic sound utilizing the MSP430 Ultra Low-power microcontroller
Características clave
-
Embedded System TypeMCU
-
Family NameMSP430
Piezas destacadas (4)
| Número de pieza | Fabricante | Tipo | Descripción | |||
|---|---|---|---|---|---|---|
|
CD4049UBDR | Texas Instruments | Buffers and Line Drivers | Buffer/Converter 6-CH Inverting Push-Pull CMOS 16-Pin SOIC T/R | AÑADIR AL CARRITO | |
|
TPS61046YFFT | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 1.8V to 5.5V Step Up Single-Out 4.5V to 28V 6-Pin DSBGA T/R | AÑADIR AL CARRITO | |
|
TPS71733DCKR | Texas Instruments | Linear Regulators | LDO Regulator Pos 3.3V 0.15A 5-Pin SC-70 T/R | AÑADIR AL CARRITO | |
|
|
TPS61046YFFR | Texas Instruments | DC to DC Converter and Switching Regulator Chip | Conv DC-DC 1.8V to 5.5V Step Up Single-Out 4.5V to 28V 6-Pin DSBGA T/R | AÑADIR AL CARRITO | |
