PMP9126, 36Vdc-75Vdc Input, 5V/15A Active Clamp forward, 1/8 Brick
Diseño de referencia usando la pieza UCC2897ARGPR de Texas Instruments
이미지
1 / 1
Documentos asociados
Para productos finales
- Automotive and Transportation
- DC to DC Power Supply
- Servers
- Telecom Infrastructure
Descripción

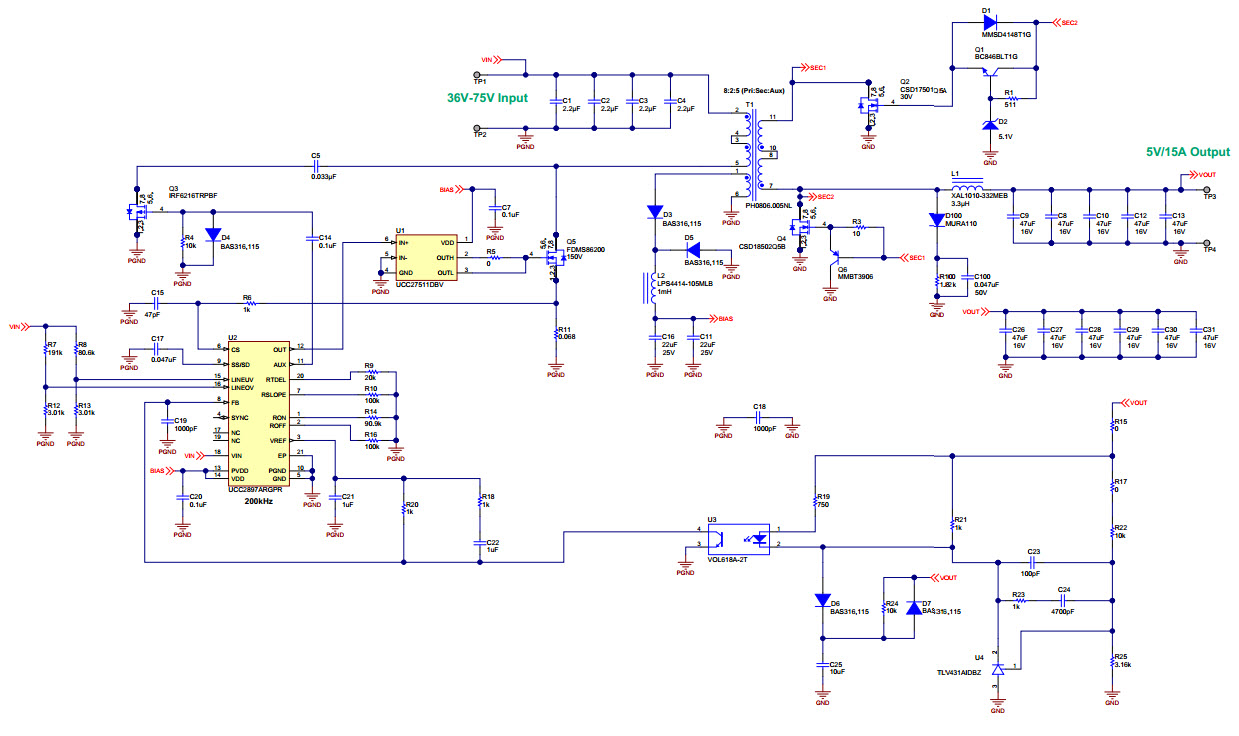

- PMP9126, This reference design generates a 5V/15A output from a 36V to 75V telecom input. The UCC2897A controls an active clamp forward converter power stage. The low gate charge and low RDSon of the CSD17501Q5A and CSD18502Q5B, implemented as a synchronous rectifiers, provides for a highly efficient design. This design is laid out in a standard eighth brick footprint and achieves efficiencies up to 94%.It uses only surface mount components, including ceramic output capacitors
Características clave
-
Conversion TypeDC to DC
-
Input Voltage36 to 75 V
-
Output Voltage5 V
-
Output Current15 A
-
Output Power75 W
-
Efficiency94 %
-
TopologyForward- Active Clamp|Forward- Synchronous
Piezas destacadas (6)
| Número de pieza | Fabricante | Tipo | Descripción | |||
|---|---|---|---|---|---|---|
|
TLV431AIDBZRG4 | Texas Instruments | Voltage References | V-Ref Adjustable 1.24V to 6V 15mA 3-Pin SOT-23 T/R | AÑADIR AL CARRITO | |
|
UCC27511DBVR | Texas Instruments | Gate and Power Drivers | Driver 8A 1-OUT Low Side Inv/Non-Inv 6-Pin SOT-23 T/R | AÑADIR AL CARRITO | |
|
VOL618A-2T | Vishay | Transistor and Photovoltaic Output Photocouplers | Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin SOP | AÑADIR AL CARRITO | |
|
|
UCC27511DBVT | Texas Instruments | Gate and Power Drivers | Driver 8A 1-OUT Low Side Inv/Non-Inv 6-Pin SOT-23 T/R | AÑADIR AL CARRITO | |
|
|
TLV431AIDBZR | Texas Instruments | Voltage References | V-Ref Adjustable 1.24V to 6V 15mA 3-Pin SOT-23 T/R | AÑADIR AL CARRITO | |
|
UCC2897ARGPR | Texas Instruments | PWM and Resonant Controllers | Current Mode PWM Controller 2A 1000kHz 20-Pin VQFN EP T/R | AÑADIR AL CARRITO | |
