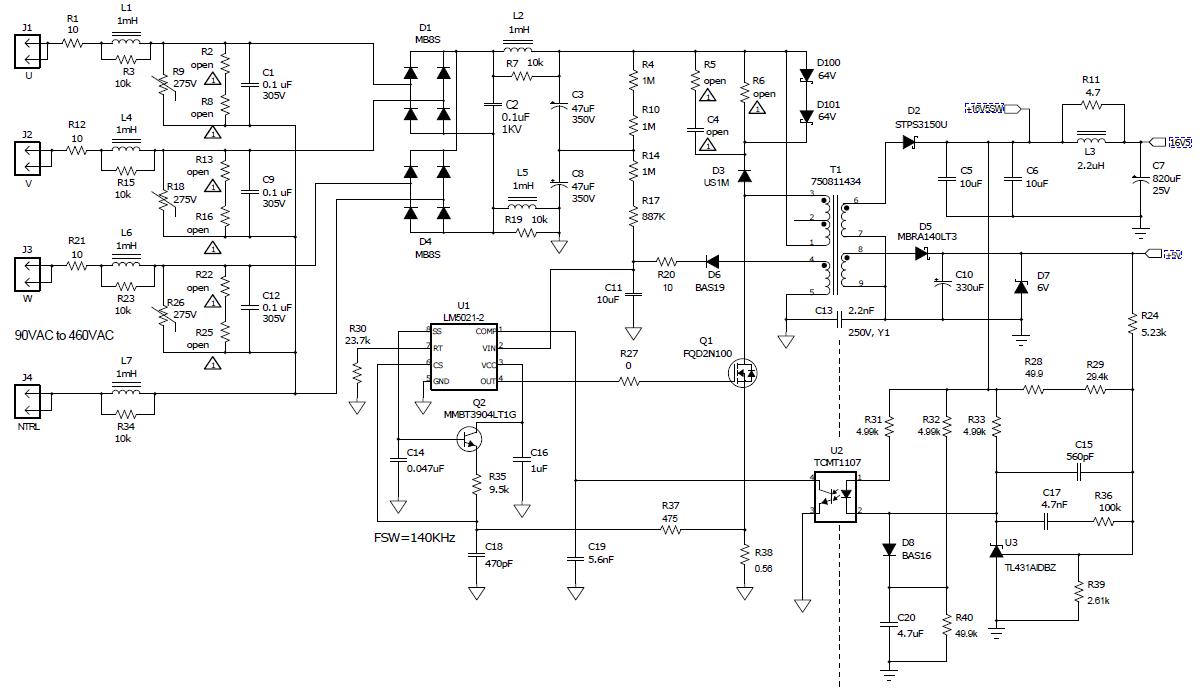

PMP7146.3, 3-ph E-Meter. Input voltage: 2 and 3 phase, outputs: 16.5V@300mApk,12V@500mA,3.3V@100mApk,1.9V@150mA
Diseño de referencia usando la pieza LM5021MMX-2 de Texas Instruments
이미지
1 / 1
Documentos asociados
Para productos finales
- Metering
Descripción
- PMP7146.3, 3-ph E-Meter. Input voltage: 2 and 3 phase, outputs: 16.5V@300mApk,12V@500mA,3.3V@100mApk,1.9V@150mA. PMP7146 has been designed especially for E-meters with PLC (power line communication) on board. input filter shows high impedance to PLC transmitter and controller LM5021 works in constant switching frequency. A settable skip-mode improves efficiency at light load. Two Bucks and an LDO supply power to digital section of E-meter
Características clave
-
Conversion TypeAC to DC
-
Input Voltage90 to 460 (AC) V
-
Output Voltage3.3 V
-
Output Current0.1 A
-
Output Power0.33 W
-
TopologyFlyback- DCM
Piezas destacadas (17)
