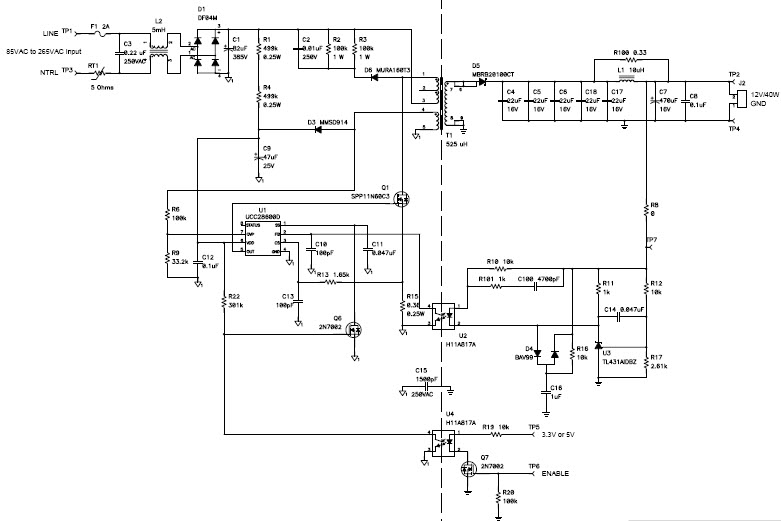

PMP5089, 85VAC-265VAC 12V/40W Output Green-mode Adaptor
Diseño de referencia usando la pieza UCC28600D de Texas Instruments
이미지
1 / 1
Documentos asociados
Para productos finales
- Consumer Electronics
Descripción
- PMP5089, 85VAC-265VAC 12V/40W Output Green-mode Adaptor. PMP5089 reference design uses the UCC28600 green-mode controller to generate a 12V/40W regulated output. The quasi-resonant switching of the UCC28600 allows this low-cost design to achieve a maximum load efficiency is over 87%, while the no load losses are less than 250mW
Características clave
-
Conversion TypeAC to DC
-
Input Voltage85 to 265 (AC) V
-
Output Voltage12 V
-
Output Current3.3 A
-
Output Power39.6 W
-
TopologyFlyback- Quasi Resonant|Flyback- DCM
