PMP2807.1, Buck, Linear (5V @ 3A) for Fleet Management
Diseño de referencia usando la pieza TPS40200D de Texas Instruments
이미지
1 / 4
Documentos asociados
Para productos finales
- Automotive and Transportation
Descripción

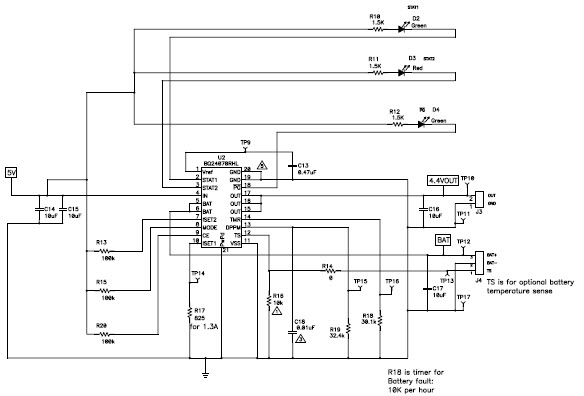

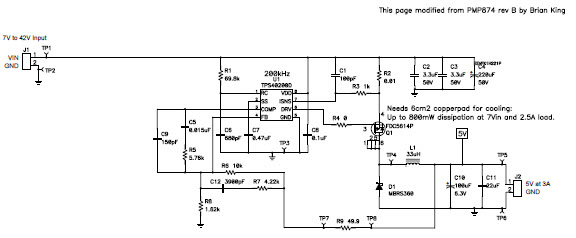

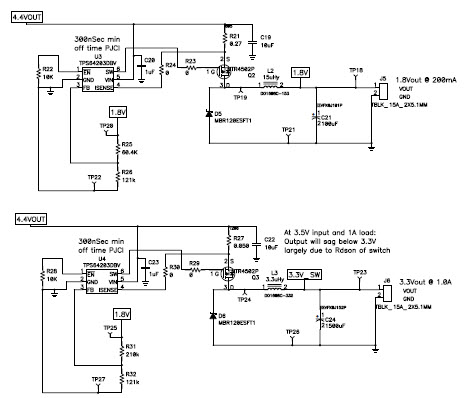

- PMP2807.1, Buck, Linear (5V @ 3A) for Fleet Management. 4.2V,2A lithium battery charging system off the wide 7V to 42V automotive range. TPS40200 plus external FET switcher provides 5V @ 3A. BQ24070 is the battery charger. TPS64203 switcher plus external FET each used to provide 3.3V and 1.8V. TPS73033 and TPS73018 linear regulators provide low noise 3.3V and 1.8V outputs
Características clave
-
Conversion TypeDC to DC
-
Input Voltage7 to 42 V
-
Output Voltage5 V
-
Output Current3 A
-
Output Power15 W
-
TopologyLDO
