EVAL-3CH4CHSOICEBZ, Evaluation Board Using the iCoupler Data Isolator
Diseño de referencia usando la pieza ADuM130D de Analog Devices
이미지
1 / 2
Para productos finales
- Bus Isolation
Descripción

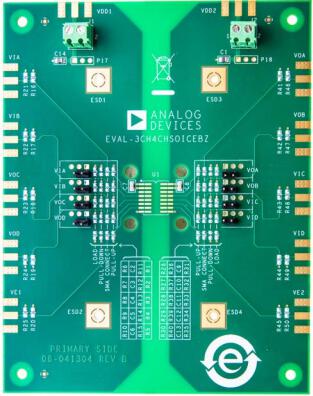

- EVAL-3CH4CHSOICEBZ, Evaluation Board supports triple and quad-channel standard data isolators in 16-lead SOIC packages. The evaluation board provides a JEDEC standard 16-lead SOIC_N and SOIC_W pad layout and routing appropriate for the evaluation of supported devices. The evaluation board provides a connection to power supplies by screw terminals and includes optimal bypass capacitors. Signal channel routing supports signal distribution and loopback, and provides positions for loads referenced to the VDD1/VDD2 and GND1/GND2 planes
