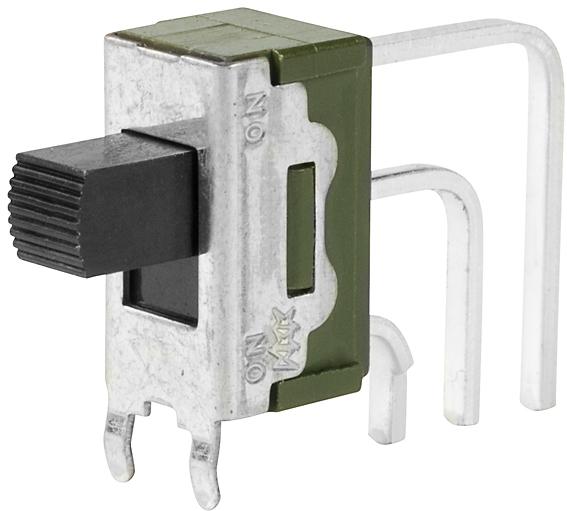

NKK SwitchesMS12ASW40Interruptor corredizo
Switch Slide ON None ON SPDT Side Slide 6A 250VAC 100000Cycles PC Pins Bracket Mount/Through Hole
| Compliant | |
| EAR99 | |
| Obsolete | |
| 8536.50.90.50 | |
| SVHC | Yes |
| Índice de SEP por encima del límite autorizado | Yes |
| Automotive | No |
| PPAP | No |
| Side Slide | |
| SPDT | |
| ON None ON | |
| 6@125VAC | |
| 1000VAC | |
| 1000 | |
| 10 | |
| 25000 | |
| 100000 | |
| 5.1 | |
| 1 | |
| Bracket Mount/Through Hole | |
| PC Pins | |
| 3 | |
| 2.7 | |
| 3.81 | |
| Terminals | |
| Epoxy | |
| Vertical Right Angle | |
| -30 | |
| 85 | |
| Miniature | |
| 7.1 | |
| 10.16 | |
| 13.25 | |
| 7.1 | |
| 23.48 | |
| 13.25 |
This easy-to-use MS12ASW40 slide switch from NKK Switches is perfect for turning your circuit on and off. This device has a maximum current rating of 6 A @ 125VAC. It has a SPDT configuration. This slide switch has an operating temperature range of -30 °C to 85 °C. The MS12ASW40 slide switch has a PC pin termination style. The maximum AC voltage rating is 250 VAC. This product is 7.1 mm long, 13.25 mm tall and 23.48 mm deep.
| EDA / CAD Models |
