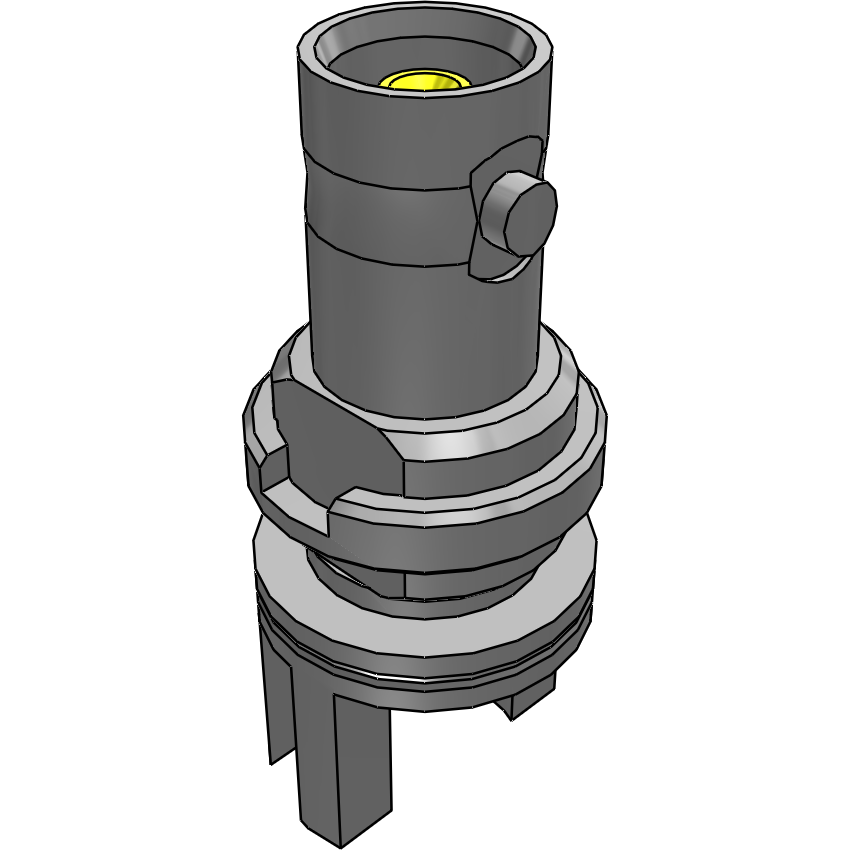

SamtecHDBNC-J-P-GN-ST-EM1Conector RF
Conn HD-BNC 0Hz to 12GHz 75Ohm Solder ST Edge Mount RCP Gold Tray
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| 8536.69.40.10 | |
| SVHC | Yes |
| Índice de SEP por encima del límite autorizado | Yes |
| Automotive | No |
| PPAP | No |
| HD-BNC | |
| RCP | |
| Solder | |
| Straight | |
| F | |
| Gold | |
| 0 to 12G | |
| 500VAC | |
| 75 | |
| Threaded/Bayonet Lock | |
| Standard | |
| -65 | |
| 125 | |
| Tray | |
| 6.5 | |
| 17.5 | |
| 6.5 | |
| Edge Mount |
Connect and protect your RF cable with this bnc HDBNC-J-P-GN-ST-EM1 RF connector from Samtec, it will give a low impedance for easy data transferring. This connector's body is plated in gold. It has a female type gender. It has a straight body orientation. It has an operating frequency of 0 to 6G Hz. This product is 6.5 mm long, 6.5 mm tall and 17.5 mm deep. This rf connector has an operating temperature of -65 to 125 °C.
