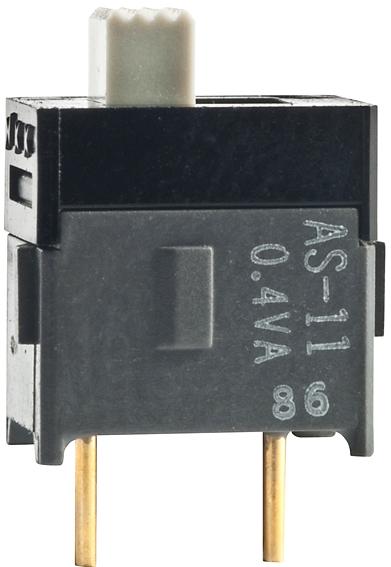

NKK SwitchesAS11APInterruptor corredizo
Switch Slide ON None OFF SPST Top Slide 0.1A 28VAC 28VDC 0.4VA 50000Cycles PC Pins Thru-Hole
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.50 | |
| SVHC | Yes |
| Índice de SEP por encima del límite autorizado | Yes |
| Automotive | No |
| PPAP | No |
| Top Slide | |
| SPST | |
| ON None OFF | |
| 0.1@28VAC 28VDC | |
| 0.4@28VAC 28VDC | |
| 500VAC | |
| 500 | |
| 50 | |
| 50000 | |
| 50000 | |
| Gray | |
| 2.5 | |
| 1 | |
| 5.08 | |
| Through Hole | |
| PC Pins | |
| 2 | |
| 3.1 | |
| Terminals | |
| Epoxy | |
| Glass Fiber/Polyamide | |
| Straight | |
| -30 | |
| 85 | |
| Sub-Miniature | |
| 9.8 | |
| 5.38 | |
| 9.1 | |
| 9.8 | |
| 5.38 | |
| 11.6 |
The AS11AP slide switch from NKK Switches makes turning on or off your circuit a piece of cake. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a SPST configuration. This slide switch has an operating temperature range of -30 °C to 85 °C. The AS11AP slide switch has a PC pin termination style. This product is 9.8 mm long, 11.6 mm tall and 5.38 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.
| EDA / CAD Models |
