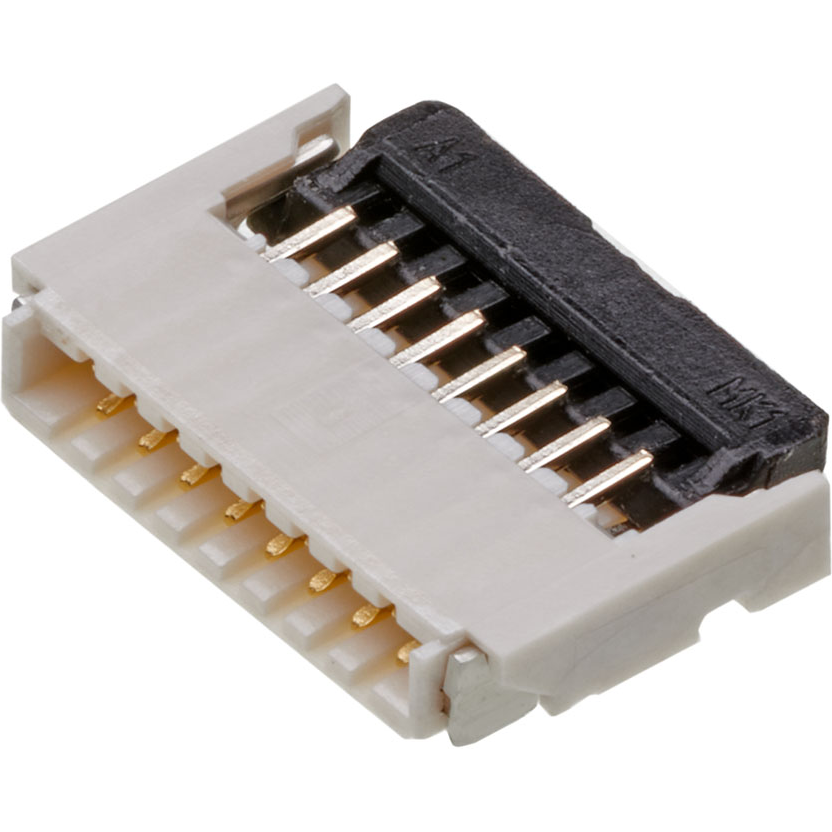

Molex5034800800Conector FFC-FPC

Utilize FFC technology with this fpc connector 5034800800 flexible flat cable from Molex which can hold many transmission channels on a very narrow, very flat ribbon-like structure. This is a 1-row connector. It has a right angle body orientation. Its pitch is 0.5 mm. This socket type connector's 8 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 50 VDC|50VAC. This device has a maximum current rating of 0.5 A/contact. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. 5034800800 is housed in white liquid crystal polymer. It uses the solder termination method. This product is 5.7 mm long, 1 mm tall and 4 mm deep. This flexible flat cable has an operating temperature of -40 to 85 °C.
