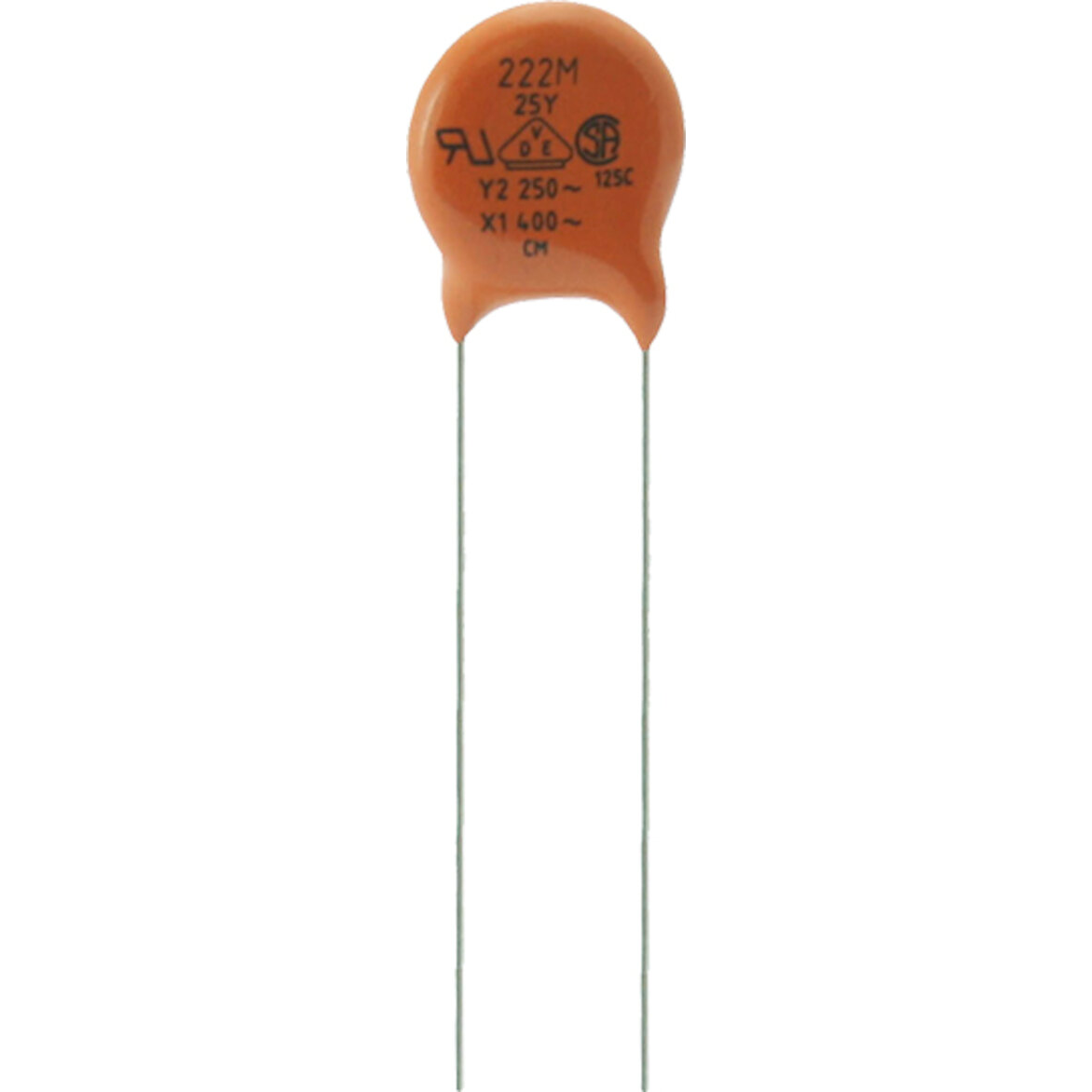

Vishay25YD22-RCapacitor cerámico de una capa
Cap Ceramic Single Suppression X1/Y2 0.0022uF 400VAC/250VAC Y5S 20% (11.7 X 4.3mm) Radial Disc 6.4mm 125°C Bulk
| Compliant | |
| EAR99 | |
| Active | |
| 8532.23.00.60 | |
| Automotive | No |
| PPAP | No |
| Ceramic Disc | |
| 0.0022uF | |
| 20% | |
| 400VAC|250VAC | |
| Y5S | |
| No | |
| Disc | |
| Radial | |
| 6.4 | |
| X1/Y2 | |
| 2 | |
| 11.7 X 4.3 | |
| -30 | |
| 125 | |
| Bulk | |
| 0.64 | |
| 11.7(Max) | |
| 4.3(Max) | |
| 14.9(Max) | |
| Through Hole |
Thanks to Vishay and their low cost ceramic disc 25YD22-R single-layer ceramic disc capacitor, you can feel rest assured that heat will be properly dissipated thanks to a ceramic dielectric. It can withstand a voltage of 400 VAC|250VAC. This high frequency capacitor has a maximum operating temperature of 125 °C. Its capacitance value is 0.0022uF. This product is 4.3(Max) mm deep. It has a tolerance of 20%. The 25YD22-R high frequency capacitor has a radial termination style. This part has a lead diameter of 0.64 mm and a pitch of 6.4 mm.
