AIROC™ CYW5591x connected MCUs for Healthcare and Industrial Applications
Connected MCU with Wi-Fi 6E tri-band and Bluetooth® Low-Energy 5.4
IoT products for Digital Health and Industrial applications require versatile solutions combining powerful, secure compute & control with high-quality wireless capabilites. These products must perform in challenging environments, ensuring reliable wireless connections on top of a secure platform to run the demanding applications needed for today's advanced use cases.

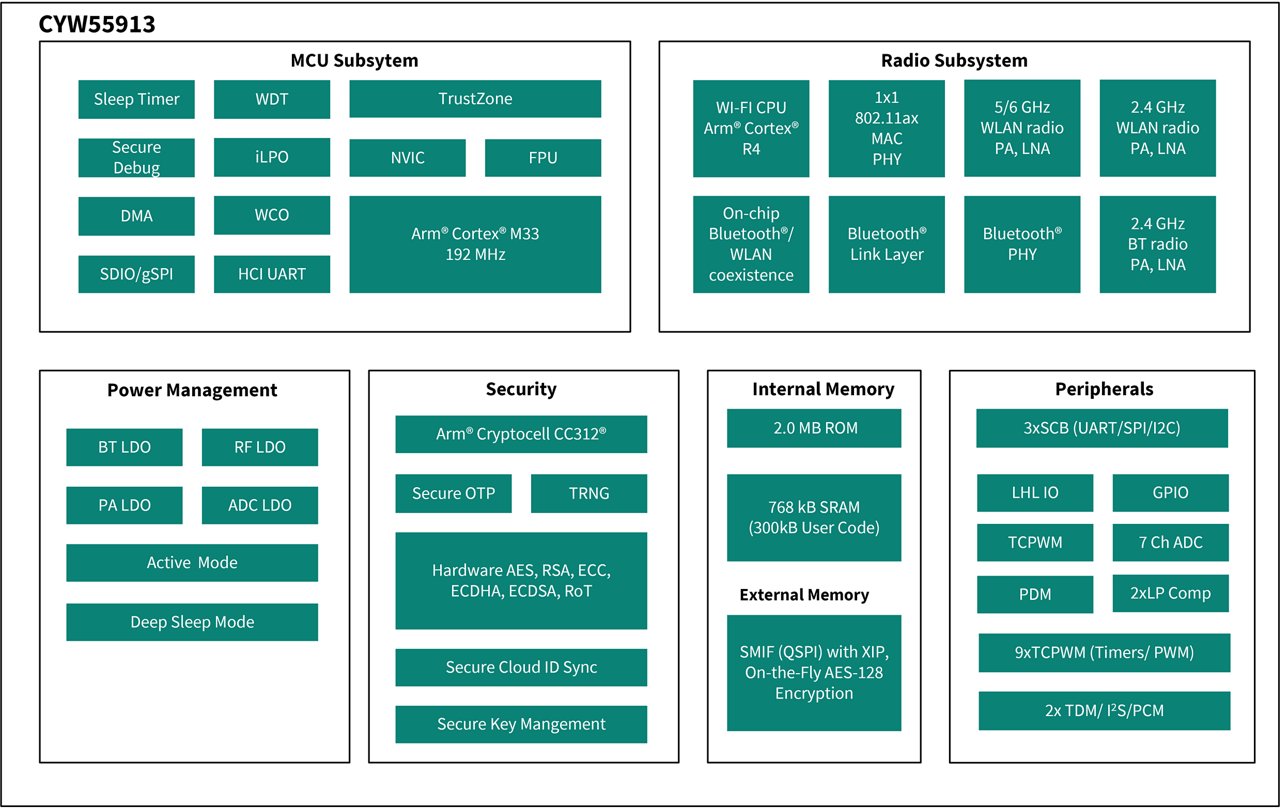

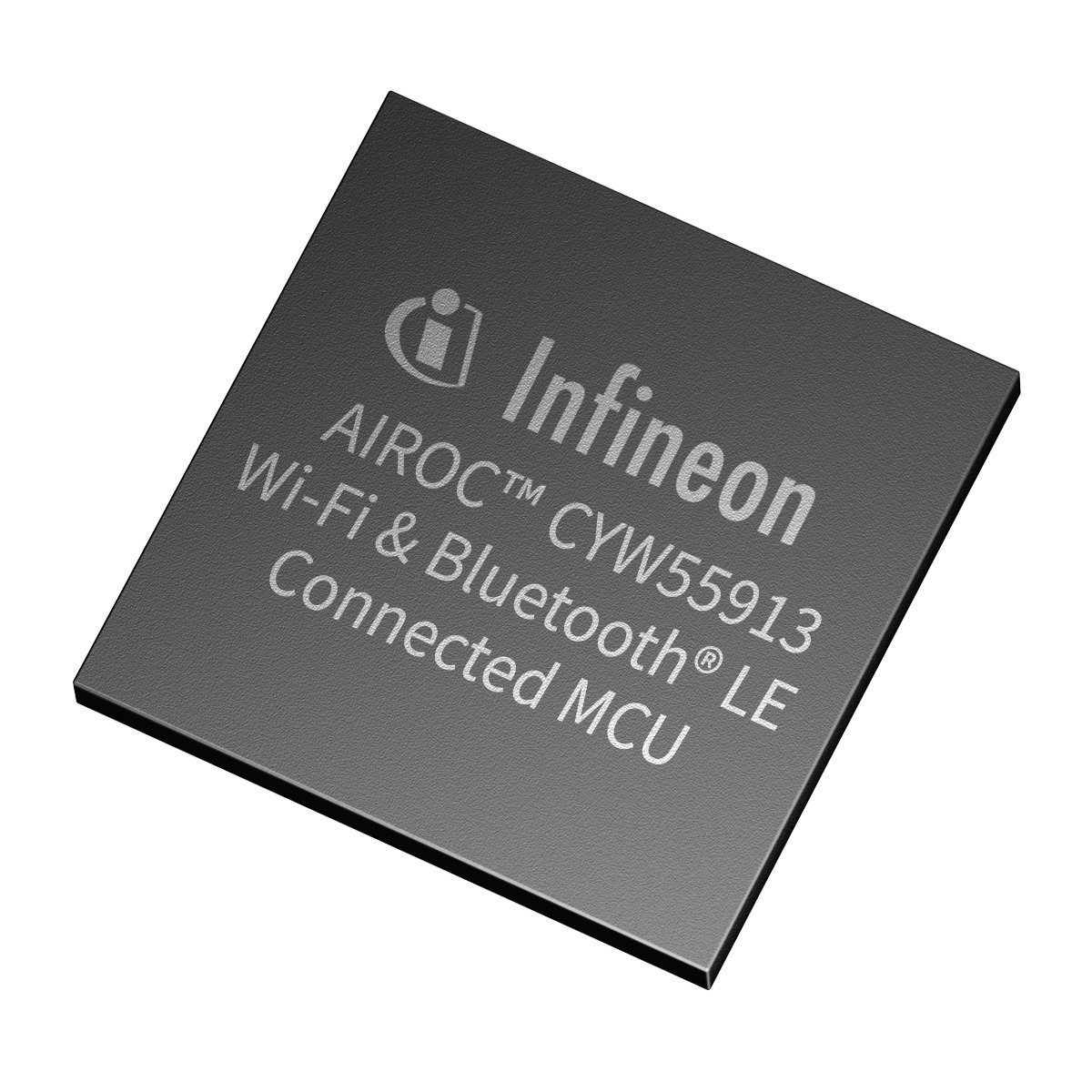

The AIROC™ CYW55913/2/1 are a family of connected MCUs that support 1x1 single-stream, tri-band (CYW555913), dual-band (CYW55912), and single-band (CYW55911), Wi-Fi 6/6E, IEEE 802.11ax-compliant, supporting up to 1024 QAM (MCS11) in 20MHz channels and Bluetooth® Core 5.4. The devices support a 192 MHz Arm® Cortex®-M33 processor with Arm® TrustZone CC312, and include 768 KB of SRAM, with a QSPI interface for expanding FLASH and PSRAM with eXecute-in-place (XIP) and on-the-fly (OTF) encryption and decryption. CYW55913/2/1 provide best in class Wi-Fi range and features a Bluetooth® Core 5.4 supporting Low Energy (LE) and Long Range. The devices are intended to be the primary MCU in the system, or to offload a host processor from Wi-Fi and networking functions.
The AIROC™ CYW5591x incorporates multi-layer security to protect your device at run time and through whole product life cycle. It supports PSA Level 2, RED and RSA certification to meet the demanding security requirements for Digital Health and Industrial applications.

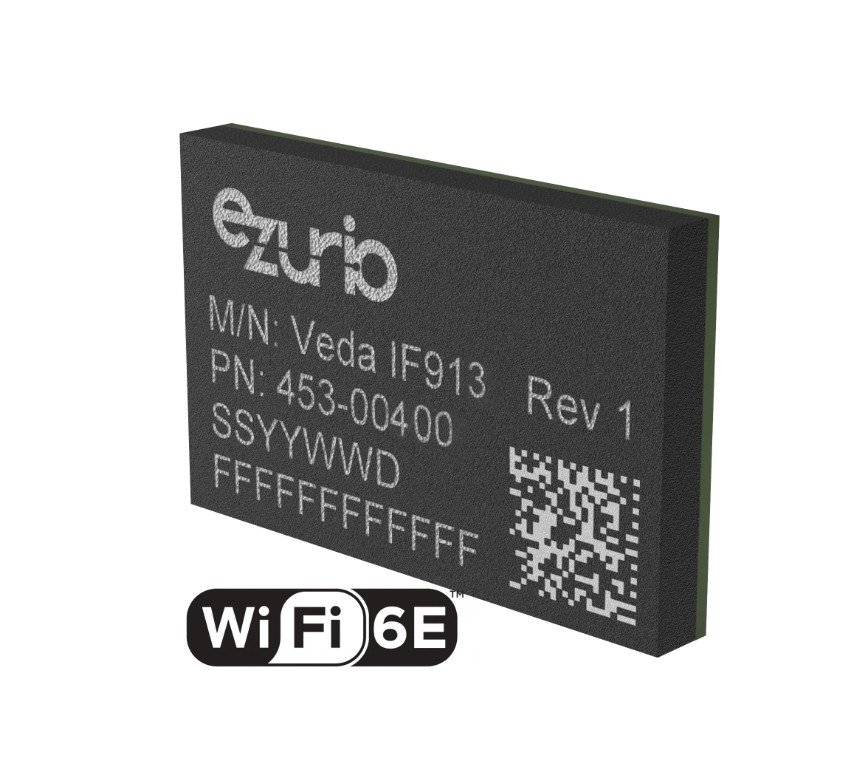

The CYW5591x provides a fully tested and certified AIROC Bluetooth Stack and example code to shorten development cycle and time-to-market, and with pre-certified modules from third party partners like Ezurio and Azurewave, time-to-market can be further accelerated and development complexity reduced.
Webinar
Simplifying Secured Wireless Design and Certification for Industrial and Healthcare Devices
Presenters:
- Mei-Ling Chiang, Director Product Marketing - Infineon Technologies
- Andrew Ross, Senior Product Manager - Ezurio
August 13, 2026
Features
| MCU features | Wi‑Fi/WLAN features | Bluetooth® features |
|---|---|---|
| 192 MHz Arm® Cortex®‑M33 with TrustZone CC312 | 1x1 Wi‑Fi 6 / 6E | Bluetooth® LE 5.4 |
| QSPI for FLASH/PSRAM with XIP and OTF encryption and decryption | 2.4 / 5 / 6 GHz Tri‑Band SupportOFDMA, 1024 QAM, MU‑MIMOSoft AP, STA, AP+STA modes | Embedded or hosted AIROC™ Stack – LE long range, LE 2M, LE 1M, ADV extensions, isochronous channels |
| Up to 48 GPIOs, SDIO, I2C, SPI, UART, TCPWM, TDM/I2S, PDM, ADC | Leading transmit power: +24 dBmBest in class sensitivity: -101.5 dBm | Three output power paths optimized for best efficiency: +19/+13/+4 dBm |
| Stand alone MCU or Network coprocessor | Infineon range improving features, antenna diversity and eFEM option | 111.5 dBm LE LR sensitivity |
| Stand alone MCU or Network coprocessor | 11ax target wake time (TWT)Network offload features | Shared or dedicated Bluetooth® antenna for optimized coexistence with Wi‑Fi and 802.15.4 |
| Sensor Hub | End to end security: root of trust , FW encryption/ decryption , authentication ,WPA2/WPA3 (Personal/Enterprise), Product life cycle management | |
| Matter over Wi‑Fi |
Benefits
| AIROC™ CYW5591x Wi‑Fi 6E + BLE 5.4 Connected MCU | |
|---|---|
| CYW5591x Overall Benefits | CYW5591x Wi-Fi/ Bluetooth Benefits |
| Secured: PSA Level II, RED, CRA certification | Extended range for Wi-Fi and Bluetooth® |
| Multi-Layer security and product life cycle management | Lower latency and less interference in 6GHz greenfield spectrum |
| Wi-Fi QuickTrack and AIROC stack /Controller QDID shorten development time and cost | Network robustness & efficiency |
| Wi-Fi sensing and Radar stack enrich user expérience | Lower power Wi-Fi and Bluetooth® |
| Rich example code: Sensor hub, Matter over Wi-Fi for door lock & thermostat, Apple FindMy and much more | Network offload Co-processor for fast connect & lower system power |
| Simple and easy develop environment with ModusToolbox™ IDE | Smart CoEx for Wi-Fi/Bluetooth® and external LTE,15.4 radio |
| Multiple PSRAM and Flash size tailored for different applications | Hosted or embedded Bluetooth mode |
Applications
- Smart home / IoT->Smart home, IP cameras, door locks, thermostats, garage doors, appliances, printers, gateways, speakers, gaming, battery powered devices
- Wearables->Smart watches, fitness bands
- Industrial/Healthcare ->Point-of-sale terminals, smart meters, HVAC, smart building control, CPAP machines, patient monitoring
Software Enablement

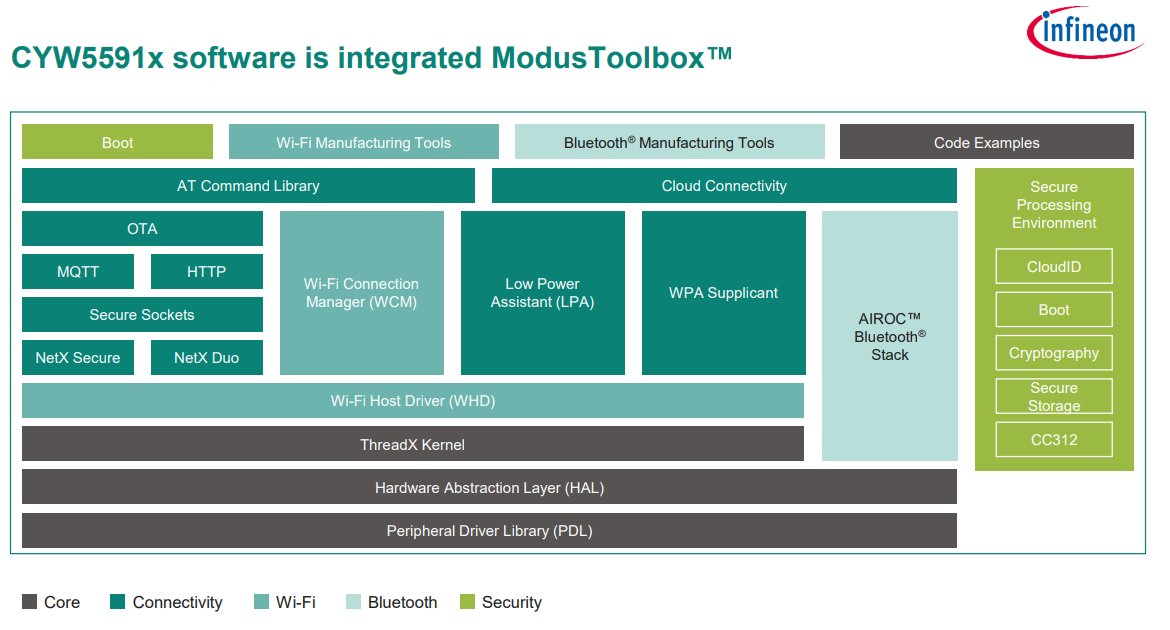

CYW5591x is integrated into Infineon's ModusToolbox™ Ultimate IoT Development Environment to enable your development of advanced user applications. A full set of tools, libraries, and code examples is provided to accelerate your time to market.
