i.MX93EVK

NXP Semiconductors18 Apr 2024

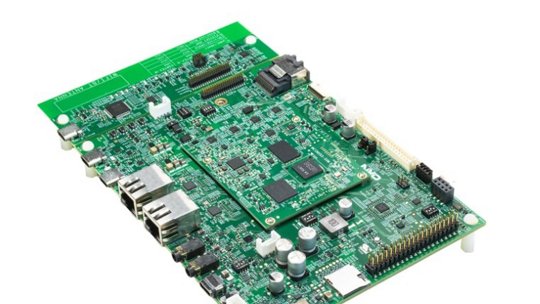

A detailed green circuit board featuring various electronic components, including chips, capacitors, and connectors
View all articles

The i.MX 93 EVK for 11x11mm sample provides a platform for comprehensive evaluation of the i.MX 93 applications processors and also includes the ability to measure power consumption on the power rails.The two-board solution consists of a compute module that contains i.MX 93 SoC, LPDDR4, eMMC, QSPI, NXP’s PMIC PCA9451A and power monitoring circuits and a base board that brings out the broad connectivity including NXP’s IW612 WiFi module. This kit provides an excellent starting point to accelerate your own design.

Apply now for free

Features

Processor

  • i.MX 93 Applications Processor
  • Dual Cortex-A55 @1.7GHz
  • Cortex-M33 @250MHz
  • Arm® Ethos™ U-65 MicroNPU
  • EdgeLock® Secure Enclave

Memory

  • 2 GB LPDDR4X / LPDDR4
  • 16 GB eMMC5.1
  • Quad SPI Flash
  • MicroSD Slot

Display and Camera Interfaces

  • MIPI DSI (mini-SAS)
  • X4 Lane LVDS (HDR)
  • MIPI-CSI (Camera 22P RPi)
  • Parallel RGB LCD (2x20 RPi)
  • Parallel Camera (2x20 RPi)

Wireless

  • M.2 KEY-E Slot with WiFi / BT IEEE802.15.4 Support

Audio

  • Audio HP Jack
  • External Speaker Connection
  • MQS Support
  • Audio HAT Board Support
  • PDM MIC Array Support

Connectivity

  • X2 USB C 2.0 Connectors
  • 2x GbE RJ45
  • CAN (HDR)
  • RPi 2X20 GPIO HDR
  • MFi Module Support
  • X4 CH ADC Support

Debug

  • JTAG Connector
  • UART Via USB C
  • Remote Debug Support
  • Power Measurement Support

Sensors

  • I3C IMU Support

Security

  • X2 Tamper Support

Tools and OS Support

  • Linux®
  • FreeRTOS

Applications

Automotive - Audio and Speech Recognition, Domain Controller Compute Off-load Engine, Driver Monitoring Systems (DMS) and Occupant Monitoring Systems, Heating Ventilation and Air Conditioning (HVAC) and Low-Cost Gateway

Industrial - Air Conditioning (AC), Building Safety, Building Security, Circuit Breaker, Heat Metering, Industrial HMI, Motor Drives, Public Address Systems, Smart Lighting, Smart Power Socket and Light Switch, Vital Signs Monitors

Smart City - Fleet Management, Inventory and Supply Chain Management, Transport Ticketing

Smart Home - Audio/Video (AV) Receivers, Home Control Panel, Home Security and Surveillance, In-Home Energy Display, Major Home Appliances, Robotic Appliance,Set Top Boxes, Small and Medium Appliances, Soundbar, Surround Sound and Sound Bars, Wireless or Networked Speakers

Apply now for free

Article Tags

Embedded System Development Boards and Kits
Microcontrollers and Processors
NXP Semiconductors

Related news articles

View all
A group of people work together at a wooden table, using laptops and a digital tablet.
Explore More Available Products on Digital Test Drive

Access selected evaluation boards and development kits remotely through Arrow’s Digital Test Drive (DTD) program — no hardware shipment or software installation required. Explore the available platforms below and Book a Session to request secure VM access and start evaluating today.

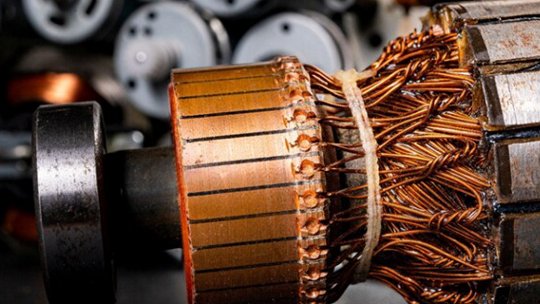

A detailed view of an electric motor rotor showcases tightly wound copper wires and metallic components. The image highlights the intricate construction of the rotor, with other motor parts visible in the blurred background.
Efficient motor control hardware and software solutions

This article will introduce the development trends in motor control technology, as well as NXP and Arrow's advantages and solutions in this field.

The image showcases autonomous robots transporting packages in a modern warehouse setting
Designing reliable and safe mobile robots with MCX’s error correction features

This article explores how MCX MCUs from NXP have advanced error correction features that make mobile robots safer and more reliable.

Small robotic vehicles are shown carrying cardboard boxes in a warehouse setting
Simplifying mobile robots’ development with NXP Semiconductors

NXP's portfolio helps reduce time to market for industrial or home robots. This blog covers key robotics requirements and NXP's solutions

NXP’s EasyEVSE: Powering the Future of Electric Vehicles
NXP’s EasyEVSE: Powering the Future of Electric Vehicles

Discover how NXP’s EasyEVSE revolutionizes electric vehicle design, enabling designers navigating the shift towards comprehensive electrification.

A conceptual representation of a neural network featuring interconnected digital nodes
NXP eIQ® Neutron Neural Processing Unit (NPU)

NXP eIQ for next generation of edge applications: Highly scalable, area and power efficient machine learning accelerator core architecture.

A group of men gathers around a sleek black sports car model in an indoor setting. The car features distinctive angular lines and a transparent section revealing internal components.
The development trends and solutions for electric cars and electric two-wheelers

Discover the swift transition to electrification in automobiles, including two-wheeled vehicles, and learn about innovative solutions.

A detailed green circuit board featuring various electronic components, including chips, capacitors, and connectors
Key Features of the i.MX 93 EVK

The i.MX 93 EVK, a compact 11x11mm platform for evaluating i.MX 93 application processors, featuring capabilities for precise power consumption assessment.

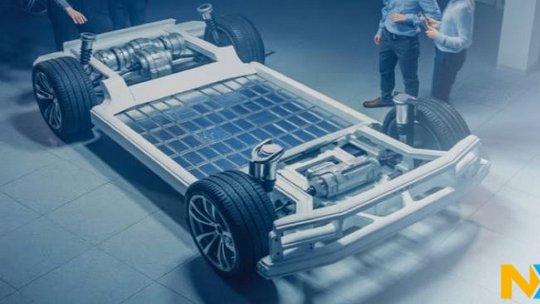

A detailed view of an electric vehicle chassis showcasing its internal components, including battery and drivetrain.
