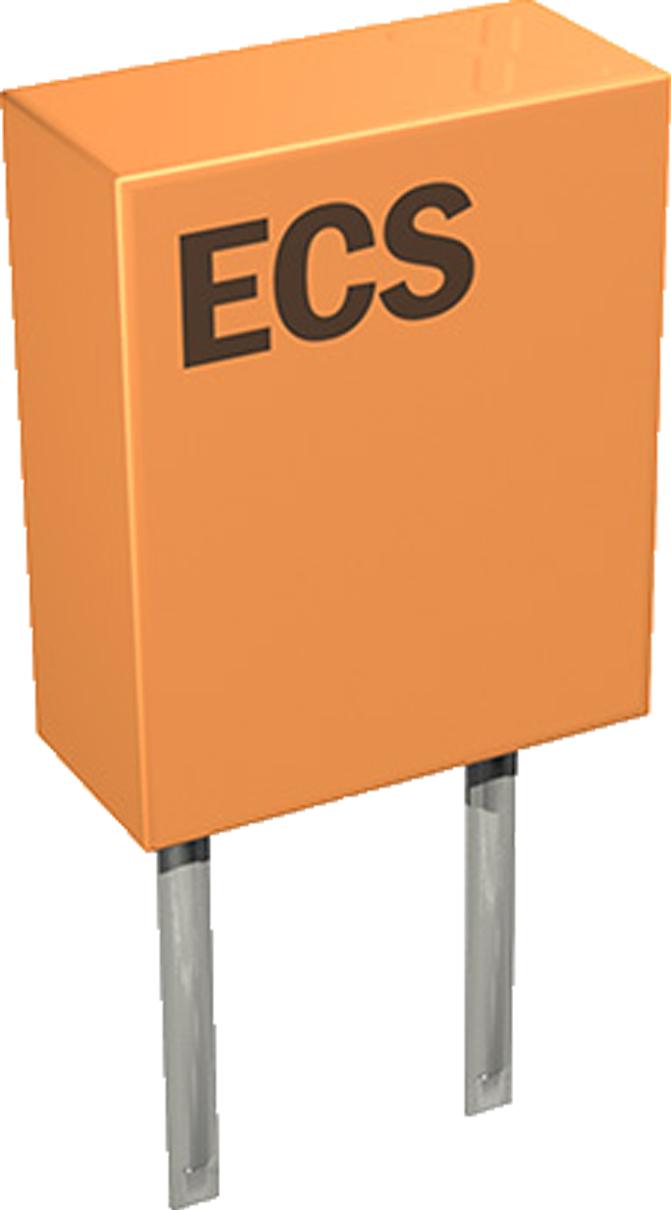

ZTB455E

Ceramic Resonator 0.455MHz ±2kHz (Tol) ±0.3% (Stability) 100pF 20Ohm 2-Pin Thru-Hole Bulk

ECS Inc International

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  NRND

• HTS

  8541.60.00.20

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  No

• PPAP

  No

• Type

  Ceramic Resonator

• Resonance Frequency (MHz)

  0.455

• Frequency Tolerance

  ±2kHz

• Frequency Stability

  ±0.3%

• Frequency Aging

  ±0.5%/(10th) Year

• Load Capacitance (pF)

  100

• Resonance Resistance (Ohm)

  20

• Minimum Operating Temperature (°C)

  -20

• Maximum Operating Temperature (°C)

  80

• Supplier Temperature Grade

  Extended

• Packaging

  Bulk

• Mounting

  Through Hole

• Package Height

  9 mm

• Package Width

  3.5 mm

• Package Length

  7 mm

• PCB changed

  2

• Pin Count

  2
