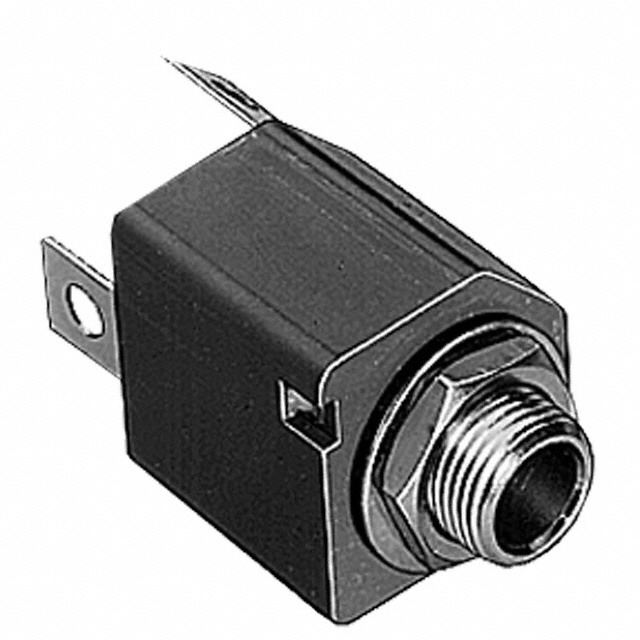

Connector Audio and Video

Z15J

Conn 1/4" Speaker Jack RCP 2 POS Solder ST Panel Mount 2 Terminal 1 Port

Switchcraft

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active-Unconfirmed

• Automotive

  No

• PPAP

  No

• Type

  1/4" Speaker Jack

• Gender

  RCP

• Number of Contacts

  2

• Number of Terminals

  2

• Number of Ports

  1

• Termination Method

  Solder

• Body Orientation

  Straight

• Maximum Current Rating (A)

  15

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• Housing Color

  Black

• Product Length (mm)

  18.8

• Product Depth (mm)

  39.2

• Mounting

  Panel Mount

• Housing Material

  Thermoplastic

• Contact Material

  Copper Alloy
