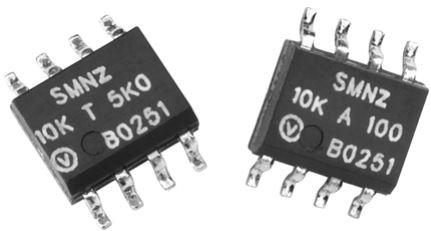

Resistor Networks and Arrays

Y1747V0008QT0W

Res Metal Foil NET 10K Ohm/10K Ohm 0.02% 0.4W ±0.2ppm/°C ISOL Molded 8-Pin DIP Gull Wing SMD Waffle

VPG Foil Resistors

Product Technical Specifications

• EU RoHS

  Not Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8533.21.00.10

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  No

• PPAP

  No

• Type

  Network

• Number of Resistors

  4

• Resistance Value (Ohm)

  10K/10K

• Tolerance

  0.02%

• Power Rating (W)

  0.4

• Power Rating per Resistor (W)

  0.1 (1/10)

• Technology

  Metal Foil

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• Temperature Coefficient (ppm/°C)

  ±0.2

• Temperature Range @ Derated Power (°C)

  70 to 125

• Circuit Designator

  ISOL

• Case Style

  Molded

• Termination Style

  Gull Wing

• Number of Terminals

  8

• Terminal Pitch (mm)

  1.27

• Packaging

  Waffle

• Package Type

  DIP

• Package Shape

  Rectangular

• Package/Case

  DIP

• Product Length (mm)

  5

• Product Depth (mm)

  6.07

• Product Height (mm)

  1.73

• Mounting

  Surface Mount
