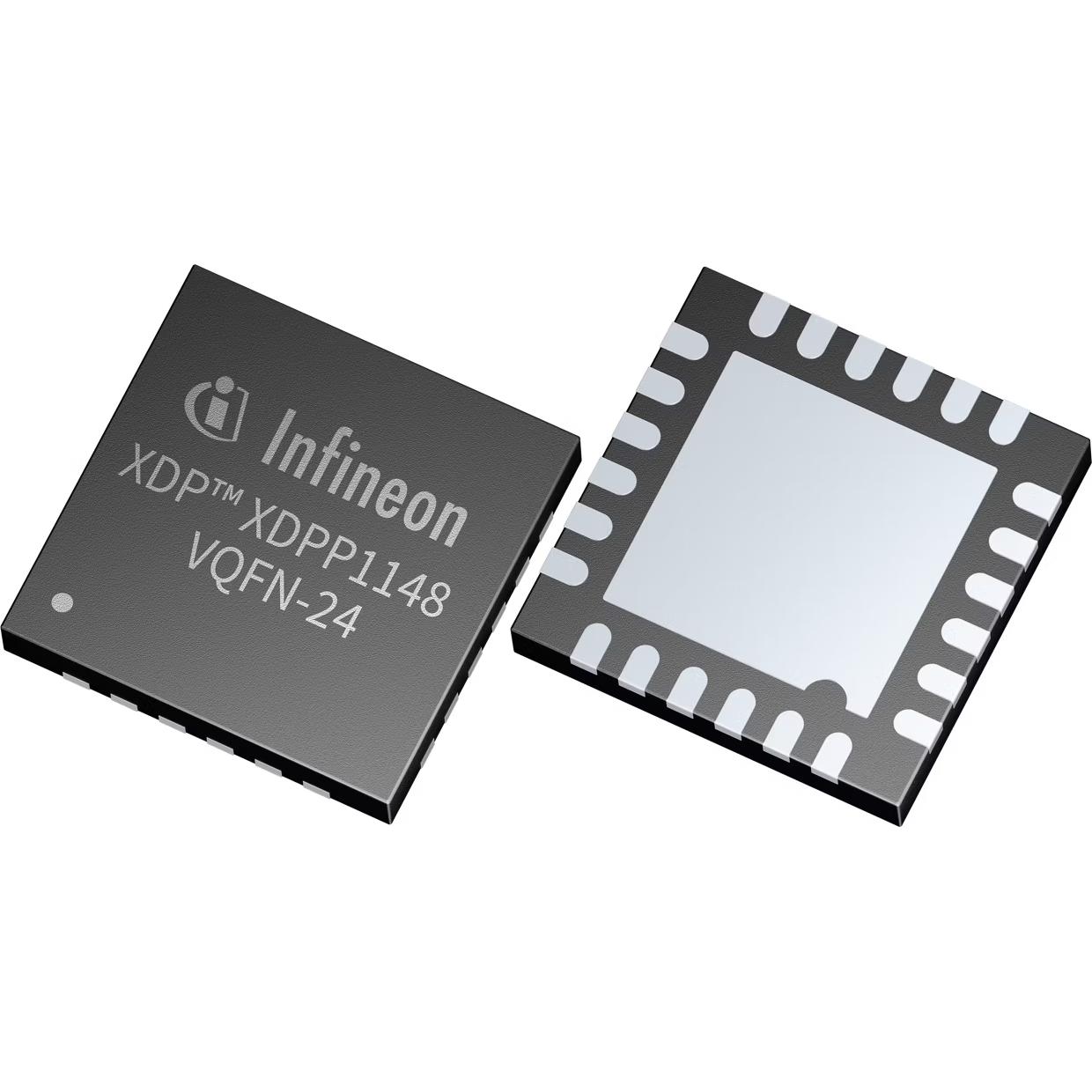

XDPP1148100BXUMA1

Controller 2.97V to 3.63V 24-Pin VQFN EP T/R

Infineon Technologies AG

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  3A991a.2.

• Part Status

  Active

• HTS

  8542.39.00.70

• Automotive

  No

• PPAP

  No

• Type

  Controller

• Maximum Switching Frequency (kHz)

  50 to 2000

• Input Voltage (V)

  2.97 to 3.63

• Minimum Operating Supply Voltage (V)

  2.97

• Typical Operating Supply Voltage (V)

  3.3

• Maximum Operating Supply Voltage (V)

  3.63

• Maximum Supply Current (mA)

  21(Typ)

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  125

• Packaging

  Tape and Reel

• Mounting

  Surface Mount

• Package Height

  0.85(Max)

• Package Width

  4

• Package Length

  4

• PCB changed

  24

• Supplier Package

  VQFN EP

• Pin Count

  24
