802.11 Wireless LAN

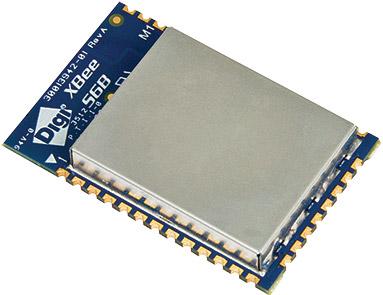

XB2B-WFPS-001

Module 802.11b/g/n 2.4GHz 72000Kbps SMD Module

Digi International

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  5A992c.

• Part Status

  Obsolete

• HTS

  8471.50.01.50

• Automotive

  No

• PPAP

  No

• Technology

  IEEE 802.11b/g/n

• Style

  Module

• Modulation Technique

  16QAM|64QAM|BPSK|CCK|DSSS|OFDM|QPSK

• Solutions

  ISM

• Number of Channels

  13

• Maximum Data Rate (Kbps)

  72000

• Band Mode

  Single

• Maximum Operating Frequency (MHz)

  2400(Typ)

• ISM Band

  2.4GHz

• Typical Sensitivity

  -93dBm

• Interface

  SPI/UART

• Maximum Output Power

  16dBm

• Minimum Operating Supply Voltage (V)

  3.14

• Maximum Operating Supply Voltage (V)

  3.46

• Maximum Current Consumption (TX) (mA)

  309

• Maximum Current Consumption (RX) (mA)

  100

• Antenna Mounting

  On Board

• Wi-Fi Compliant

  Yes

• Wi-Fi Direct

  No

• Security

  WEP/WPA-PSK/WPA2-PSK

• Operation Mode

  Infrastructure

• Minimum Operating Temperature (°C)

  -30

• Maximum Operating Temperature (°C)

  85

• Mounting

  Surface Mount

• Package Height

  3

• Package Width

  22

• Package Length

  34

• Supplier Package

  SMD Module
