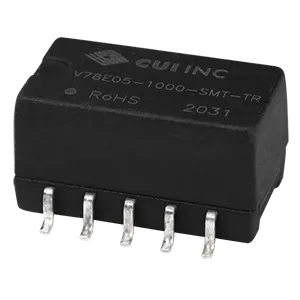

DC to DC Converter and Switching Regulator Module

V78E05-1000-SMT-TR

Module DC-DC 24VIN 1-OUT 5V 1A 5W 8-Pin SMD Module T/R

CUI Inc

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  NRND

• HTS

  8504.40.95.80

• Automotive

  No

• PPAP

  No

• Type

  Step Down

• Number of Outputs

  1

• Isolation

  Non-Isolated

• Minimum Input Voltage (V)

  8

• Typical Input Voltage (V)

  24

• Maximum Input Voltage (V)

  36

• Output Voltage (V)

  5

• Output Current (A)

  1

• Output Power (W)

  5

• Input/Output Type

  DC/DC

• Maximum Switching Frequency (kHz)

  520(Typ)

• Switching Regulator

  Yes

• Load Regulation

  0.6%

• Line Regulation

  0.4%

• Efficiency (%)

  93(Typ)

• On/Off Logic

  Positive

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Supplier Temperature Grade

  Industrial

• Packaging

  Tape and Reel

• Product Weight (g)

  1.7

• Output Type

  Fixed

• Mounting

  Surface Mount

• Package Height

  8

• Package Width

  8.5

• Package Length

  15.24

• PCB changed

  8

• Supplier Package

  SMD Module

• Pin Count

  8
