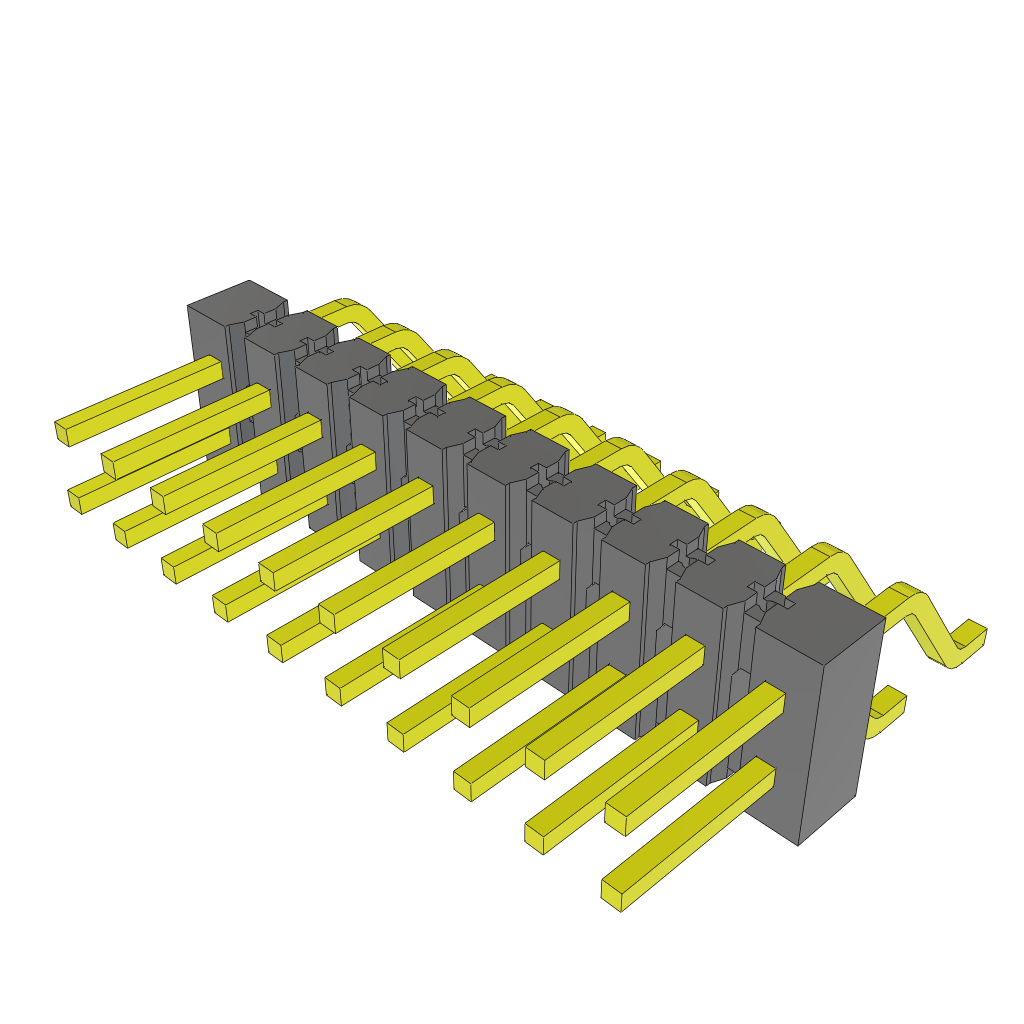

TSM-110-01-T-DH-TR

Conn Unshrouded Header HDR 20 POS 2.54mm Solder RA Side Entry SMD T/R

Samtec

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  EA

• Automotive

  No

• PPAP

  No

• Type

  Unshrouded Header

• Gender

  HDR

• Number of Contacts

  20

• Number of Rows

  2

• Termination Method

  Solder

• Terminal Pitch (mm)

  2.54

• Body Orientation

  Right Angle

• Row Spacing (mm)

  2.54

• Speed Rating (Gbps)

  8

• Maximum Current Rating (A)

  5.6/Contact

• Maximum Voltage Rating

  700VDC|495VAC

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  105

• Packaging

  Tape and Reel

• Product Length (mm)

  25.4

• Product Depth (mm)

  16.25

• Product Height (mm)

  6.1

• Mounting

  Surface Mount
