DC to AC Inverters

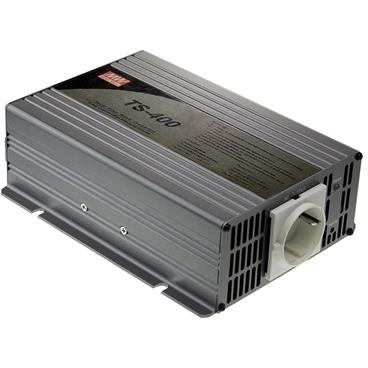

TS-400-248B

DC to AC Inverter 48VDC-IN 200VAC/220VAC/230VAC/240VAC 400W True Sine Wave

MEAN WELL

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Obsolete

• HTS

  8504.40.95.30

• Automotive

  No

• PPAP

  No

• Input/Output Type

  DC/AC

• Typical Output Voltage (VAC)

  200/220/230/240

• AC Output Voltage Regulation

  3%

• Surge Output Power

  800W

• Output Wave Form

  True Sine Wave

• Output Frequency (Hz)

  50/60

• Typical Input Voltage (VDC)

  48

• Input Voltage Range (VDC)

  42 to 60

• Input Current (A)

  10

• Efficiency (%)

  88.5(Typ)

• Output Connection Type

  IEC Connector

• Remote Control Capability

  Yes

• Protection

  Battery Low Shutdown/Fuse/Low Battery Alarm/Over Temperature/Overload/Reverse Polarity/Short Circuit

• Minimum Operating Temperature (°C)

  -10

• Maximum Operating Temperature (°C)

  40

• Product Weight (g)

  1730

• Mounting

  Screw

• Package Height

  67 mm

• Package Width

  158 mm
