LED Drivers

TPS92601BQPWPRQ1

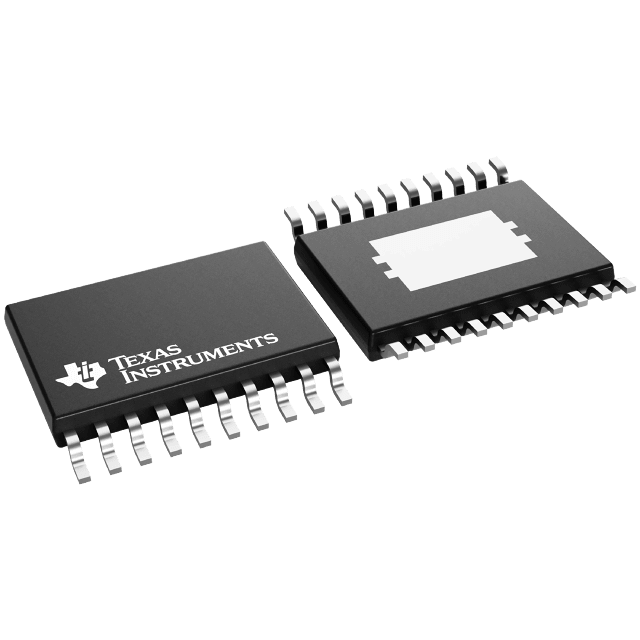

LED Driver 3uA Supply Current Automotive 20-Pin HTSSOP EP T/R

Texas Instruments

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8542.39.00.90

• Automotive

  Yes

• PPAP

  Yes

• Minimum Operating Supply Voltage (V)

  4

• Maximum Operating Supply Voltage (V)

  40

• Typical Operating Supply Voltage (V)

  5|9|12|15|18|24

• Output Voltage Range (V)

  7.4

• Maximum Supply Current (uA)

  3

• Maximum Output Current (mA)

  80

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  125

• Packaging

  Tape and Reel

• Mounting

  Surface Mount

• Package Height

  1.05(Max) mm

• Package Width

  4.5(Max) mm

• Package Length

  6.6(Max) mm

• PCB changed

  20

• Standard Package Name

  SO

• Supplier Package

  HTSSOP EP

• Pin Count

  20

• Lead Shape

  Gull-wing
