| Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.90 | |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| Step Down|Step Up | |
| Adjustable | |
| 2600 | |
| Yes | |
| 1 | |
| 1.2 to 5.5 | |
| 0.8 | |
| 1.8 | |
| 5.5 | |
| 1.8 to 5.5 | |
| 1 | |
| 25 | |
| 0.5%(Typ) | |
| 0.008%/mA(Typ) | |
| 94 | |
| -40 | |
| 125 | |
| Tape and Reel | |
| Mounting | Surface Mount |
| Package Height | 0.33(Max) |
| Package Width | 1.11(Max) |
| Package Length | 1.84(Max) |
| PCB changed | 8 |
| Supplier Package | DSBGA |
| 8 | |
| Lead Shape | Ball |

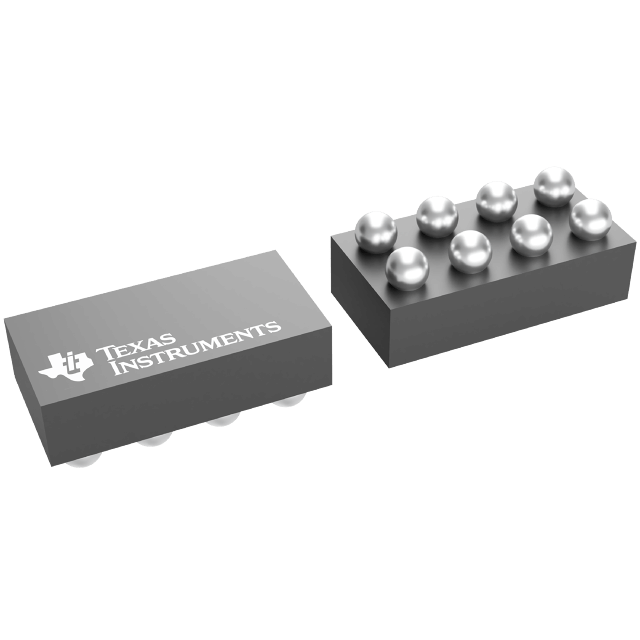

Adjust the voltage level of your devices with this step down and step up TPS63036YFGT DC to DC converter from Texas Instruments. This converter's single output can produce a current up to 0.8 A. With a small input voltage of 1.8 V and a max of 5.5 V, this will supply sufficient power to your circuit. With an adjustable output that has a voltage of 1.2 to 5.5 V, this is power management at its best. This converter is 94 % efficient. Operate at a constant current by utilizing the load regulation of 0.008%/mA(Typ) and line regulation of 0.5%(Typ). This part offers a switching frequency of 2600 kHz in order to work properly. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This converter has an operating temperature range of -40 °C to 85 °C.
