| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Non-Inverting|Inverting|Step Up|Step Down | |
| Non-Isolated | |
| Fixed | |
| 2400 | |
| Yes | |
| 1 | |
| 3.3 | |
| 0.8 | |
| 1.8 | |
| 5.5 | |
| 1.8 to 5.5 | |
| 25 | |
| 0.5%(Typ) | |
| 0.5%(Typ) | |
| 96(Typ) | |
| -40 | |
| 125 | |
| Tape and Reel | |
| Mounting | Surface Mount |
| Package Height | 0.75(Max) |
| Package Width | 2.6(Max) |
| Package Length | 2.6(Max) |
| PCB changed | 10 |
| Standard Package Name | SON |
| Supplier Package | WSON EP |
| 10 | |
| Lead Shape | No Lead |

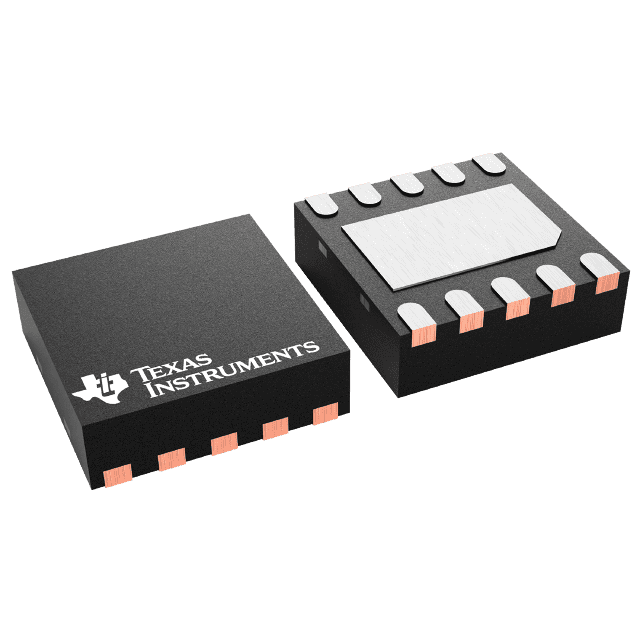

Adjust the voltage level of your devices with this non-inverting and inverting|step up|step down TPS63031DSKR DC to DC converter from Texas Instruments. This converter's single output can produce a current up to 0.8 A. Use this part at voltages between 1.8 V and 5.5 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 0.5% and line regulation of 0.5%. This converter is 96(typ) % efficient. This part offers a switching frequency of 2400 kHz in order to work properly. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This converter has an operating temperature range of -40 °C to 85 °C.
| EDA / CAD Models |
