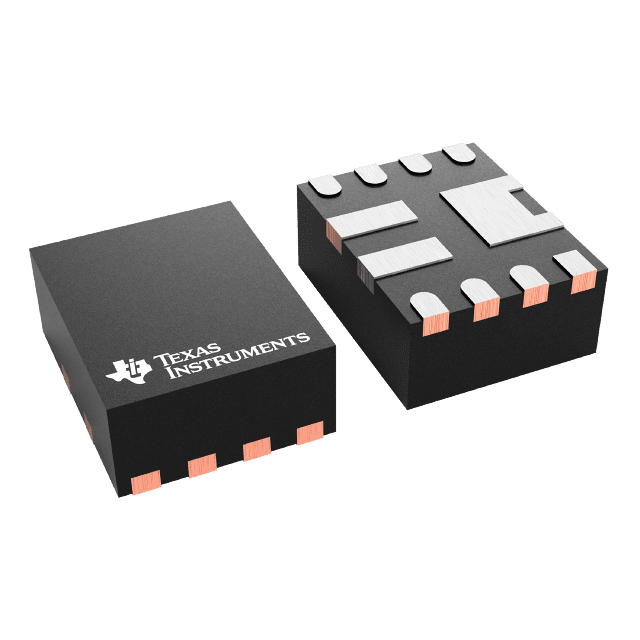

DC to DC Converter and Switching Regulator Chip

TPS61089RNRT

Conv DC-DC 2.7V to 12V Synchronous Step Up Single-Out 4.5V to 12.6V 7A 11-Pin VQFN-HR T/R

Texas Instruments

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  TPS61089RNRT

• Automotive

  No

• PPAP

  No

• Type

  Synchronous Step Up

• Output Type

  Adjustable

• Maximum Switching Frequency (kHz)

  200 to 2200

• Switching Regulator

  Yes

• Number of Outputs

  1

• Output Voltage (V)

  4.5 to 12.6

• Maximum Output Current (A)

  7

• Minimum Input Voltage (V)

  2.7

• Maximum Input Voltage (V)

  12

• Operating Supply Voltage Range (V)

  2.7 to 12

• Typical Switch Current (A)

  10

• Typical Quiescent Current (uA)

  100

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  125

• Packaging

  Tape and Reel

• Mounting

  Surface Mount

• Package Height

  0.95(Max)

• Package Width

  2.1(Max)

• Package Length

  2.6(Max)

• PCB changed

  11

• Standard Package Name

  QFN

• Supplier Package

  VQFN-HR

• Pin Count

  11

• Lead Shape

  No Lead
