DC to DC Converter and Switching Regulator Chip

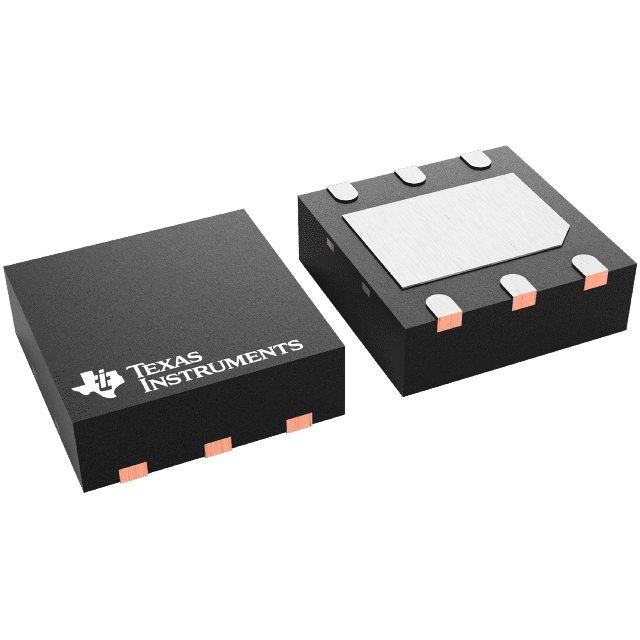

TPS40222DRPR

Conv DC-DC 4.5V to 8V Step Down Single-Out 0.8V to 7.2V 1.6A 6-Pin VSON EP T/R

Texas Instruments

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8542.39.00.90

• Automotive

  No

• PPAP

  No

• Type

  Step Down

• Output Type

  Adjustable

• Maximum Switching Frequency (kHz)

  1500

• Switching Regulator

  Yes

• Number of Outputs

  1

• Output Voltage (V)

  0.8 to 7.2

• Maximum Output Current (A)

  1.6

• Minimum Input Voltage (V)

  4.5

• Maximum Input Voltage (V)

  8

• Operating Supply Voltage Range (V)

  4.5 to 8

• Typical Quiescent Current (uA)

  1000

• Efficiency (%)

  92

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  125

• Packaging

  Tape and Reel

• Mounting

  Surface Mount

• Package Height

  0.95

• Package Width

  3

• Package Length

  3

• PCB changed

  6

• Standard Package Name

  SON

• Supplier Package

  VSON EP

• Pin Count

  6

• Lead Shape

  No Lead
