AC to DC Power Supplies

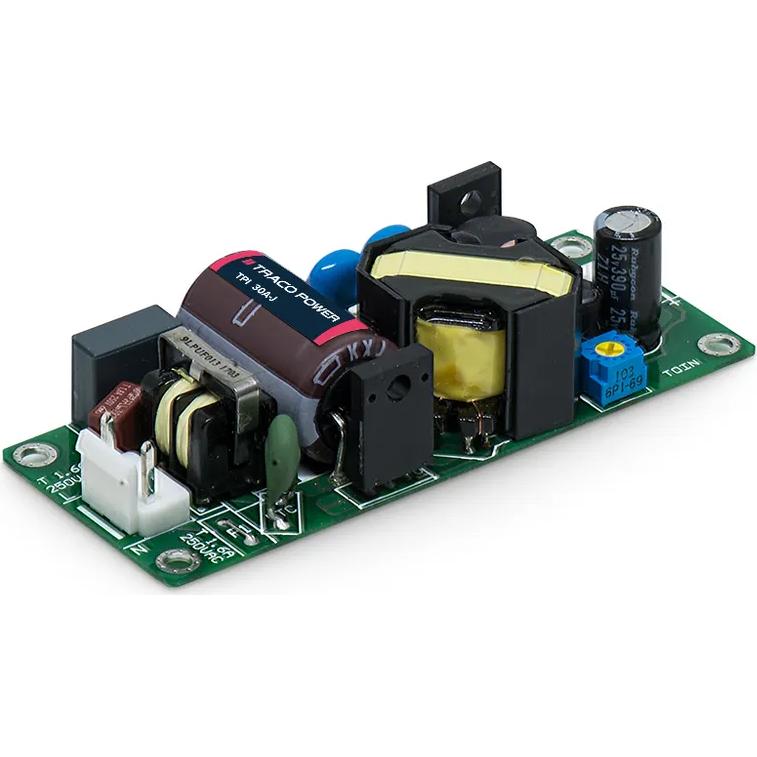

TPI 30-112A-JP

AC/DC Power Supply Single-OUT 12V 2.5A 30W 4-Pin

Traco Power

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8504.40.95.10

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  Unknown

• PPAP

  Unknown

• Type

  Regulated

• Style

  Open Frame

• Input/Output Type

  AC/DC

• Number of Outputs

  1

• Output Type

  Fixed

• Output Voltage (V)

  12

• Output Current (A)

  2.5

• Output Power (W)

  30

• Minimum AC Input Voltage (V)

  85

• Maximum AC Input Voltage (V)

  264

• Minimum DC Input Voltage (V)

  120

• Maximum DC Input Voltage (V)

  370

• Minimum Isolation Voltage

  4000VDC

• Line Regulation

  0.2%

• Load Regulation

  0.5%

• Maximum Input Current (A)

  0.8

• Input Frequency (Hz)

  47 to 440

• Tolerance (%)

  ±1

• Efficiency (%)

  89(Typ)

• Configurable

  No

• Input Connector Type

  JST RCY Male

• Output Connector Type

  JST RCY Male

• Power Indicator

  No

• Ripple and Noise

  50mV

• Medical

  No

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Product Weight (g)

  60.5

• Mounting

  Screw

• Package Height

  19.6 + 2.8(Max)

• Package Width

  34.6

• Package Length

  84.8

• PCB changed

  4

• Pin Count

  4
