| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Diode Array | |
| Octal | |
| Uni-Directional | |
| 8 | |
| 5.5 | |
| 9 | |
| 0.1 | |
| 1 | |
| 25 | |
| 0.8(Typ) | |
| -40 | |
| 85 | |
| Tape and Reel | |
| No | |
| Mounting | Surface Mount |
| Package Height | 0.75(Max) |
| Package Width | 2.6(Max) |
| Package Length | 6.6(Max) |
| PCB changed | 15 |
| Standard Package Name | SON |
| Supplier Package | WSON |
| 15 | |
| Lead Shape | No Lead |

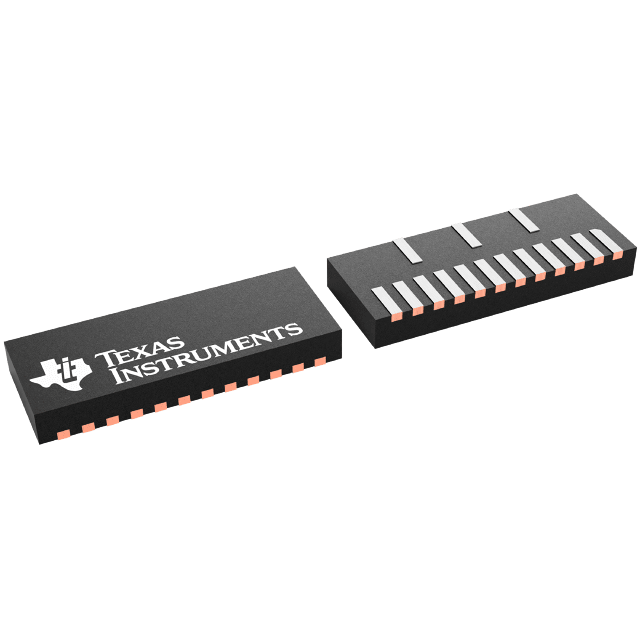

Don't let electrostatic discharges go unnoticed with this diode array TPD8S009DSMR ESD protection device from Texas Instruments. This ESD diode has a maximum ESD protection device voltage of ±9@Air Gap/±8@Contact Disc kV. This ESD diode has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It is made in a octal configuration. Its capacitance value is 0.8(Typ) pF.
| EDA / CAD Models |
