ESD Suppressors

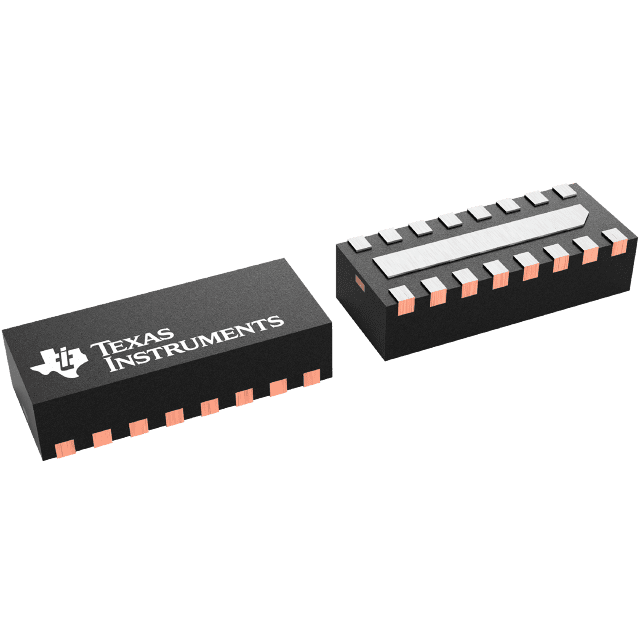

TPD8F003DQDR

ESD Suppressor Diode Array Uni-Dir 5.5V 16-Pin WSON EP T/R

Texas Instruments

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8548.00.00.00

• Automotive

  No

• PPAP

  No

• Type

  Diode Array

• Configuration

  Octal

• Direction Type

  Uni-Directional

• Number of Elements per Chip

  8

• Maximum Working Voltage (V)

  5.5

• Maximum Clamping Voltage (V)

  15

• Maximum Reverse Leakage Current (uA)

  0.01(Typ)

• Capacitance Value (pF)

  8.5(Typ)

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Packaging

  Tape and Reel

• Mounting

  Surface Mount

• Package Height

  0.75(Max)

• Package Width

  1.45(Max)

• Package Length

  3.4(Max)

• PCB changed

  16

• Supplier Package

  WSON EP

• Pin Count

  16
