Hall Effect Sensors

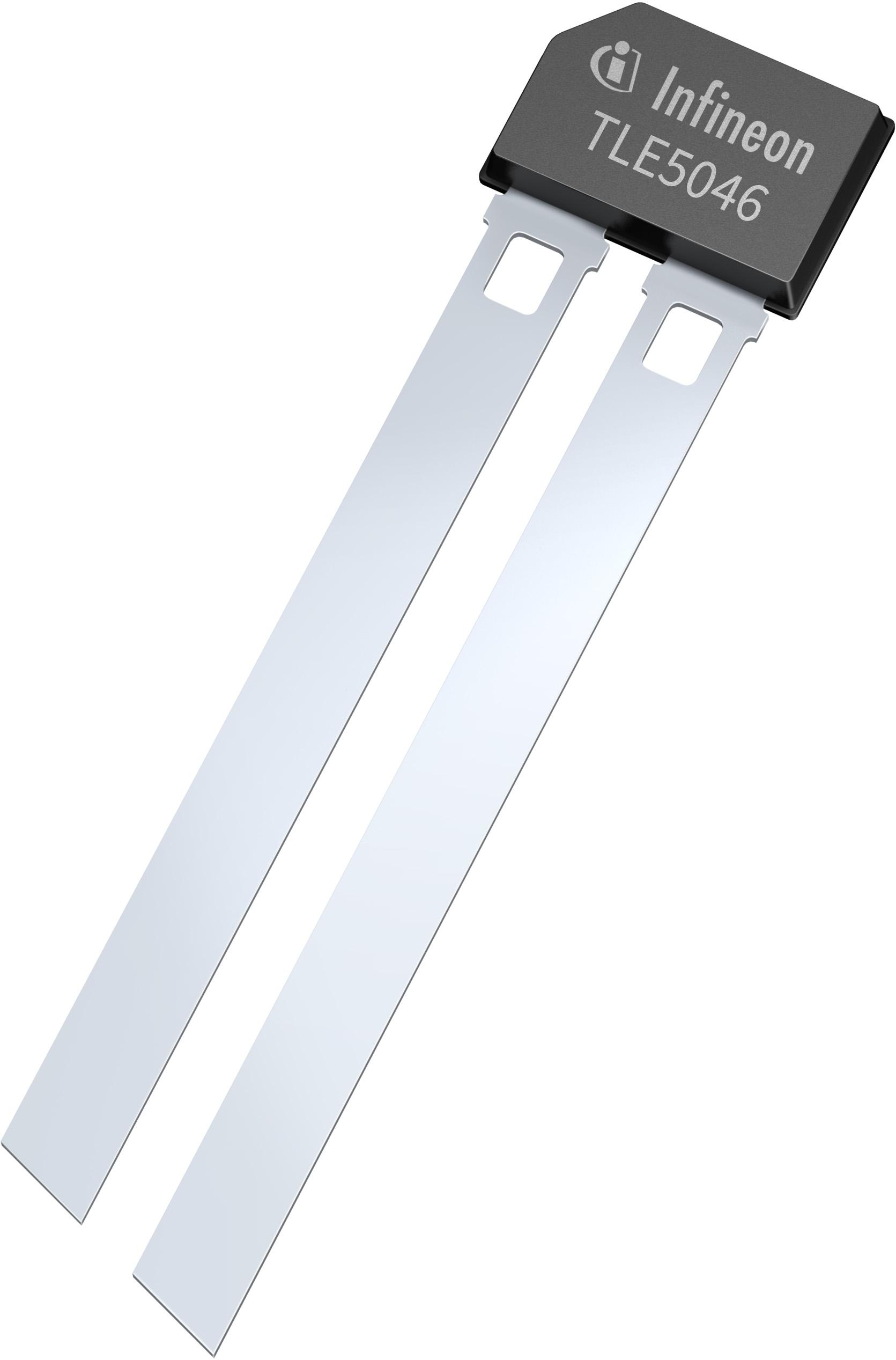

TLE5046ICAKLRHALA1

Hall Effect Sensor Differential 9V/12V/15V/18V 2-Pin SSO Ammo Automotive AEC-Q100

Infineon Technologies AG

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active-Unconfirmed

• HTS

  8543.70.45.00

• Automotive

  Yes

• PPAP

  Unknown

• Magnetic Type

  Differential

• Module/IC Classification

  IC

• Minimum Operating Supply Voltage (V)

  5.2

• Typical Operating Supply Voltage (V)

  9|12|15|18

• Maximum Operating Supply Voltage (V)

  20

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  190

• Packaging

  Ammo

• Mounting

  Through Hole

• Package Height

  3.38

• Package Width

  1

• Package Length

  5.34

• PCB changed

  2

• Standard Package Name

  SO

• Supplier Package

  SSO

• Pin Count

  2
