Hall Effect Sensors

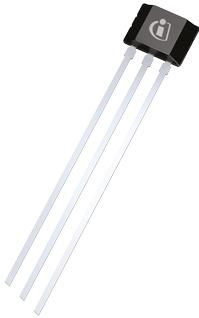

TLE4997E2XALA1

Hall Effect Sensor 1mA Bipolar/Unipolar 5V Automotive AEC-Q100 3-Pin SSO Ammo

Infineon Technologies AG

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  COMPONENTS

• Automotive

  Yes

• PPAP

  Unknown

• Magnetic Type

  Bipolar|Unipolar

• Module/IC Classification

  IC

• Maximum Magnetic Sensor Operating Point (Gs)

  2000

• Maximum Output Current (mA)

  1

• Minimum Operating Supply Voltage (V)

  4.5

• Typical Operating Supply Voltage (V)

  5

• Maximum Operating Supply Voltage (V)

  5.5

• Maximum Supply Current (uA)

  10000

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  150

• Supplier Temperature Grade

  Automotive

• Packaging

  Ammo

• Mounting

  Through Hole

• Package Height

  4.05

• Package Width

  1.5

• Package Length

  4.06

• PCB changed

  3

• Standard Package Name

  SO

• Supplier Package

  SSO

• Pin Count

  3

• Lead Shape

  Through Hole
