Universal Asynchronous Receiver Transmitter- UARTs

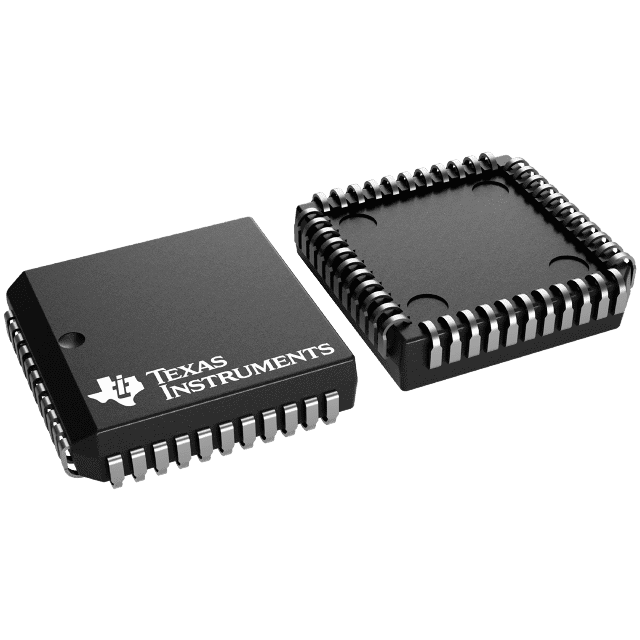

TL16C550CFNR

UART 1-CH 16byte FIFO 3.3V/5V 44-Pin PLCC T/R

Texas Instruments

Product Technical Specifications

• RoHS (Unión Europea)

  Compliant

• ECCN (Estados Unidos)

  EAR99

• Estatus de pieza

  Active

• Código HTS

  COMPONENTS

• Automotive

  No

• PPAP

  No

• Number of Channels per Chip

  1

• Transmit FIFO (byte)

  16

• Receive FIFO (byte)

  16

• Maximum Data Rate

  1MBd

• Transmitter and Receiver FIFO Counter

  No

• Minimum Operating Supply Voltage (V)

  3|4.75

• Maximum Operating Supply Voltage (V)

  3.6|5.25

• Typical Operating Supply Voltage (V)

  3.3|5

• Maximum Supply Current (mA)

  8

• Minimum Operating Temperature (°C)

  0

• Maximum Operating Temperature (°C)

  70

• DMA Support

  Yes

• False Start Bit Detection

  Yes

• Automatic Software Flow Control

  No

• Automatic Hardware Flow Control

  Yes

• Packaging

  Tape and Reel

• Mounting

  Surface Mount

• Package Height

  4.57(Max) - 0.51(Min)

• Package Width

  16.59

• Package Length

  16.59

• PCB changed

  44

• Standard Package Name

  LCC

• Supplier Package

  PLCC

• Pin Count

  44

• Lead Shape

  J-Lead
