Voltage to Frequency (V/F) and Frequency to Voltage (F/V) Converters

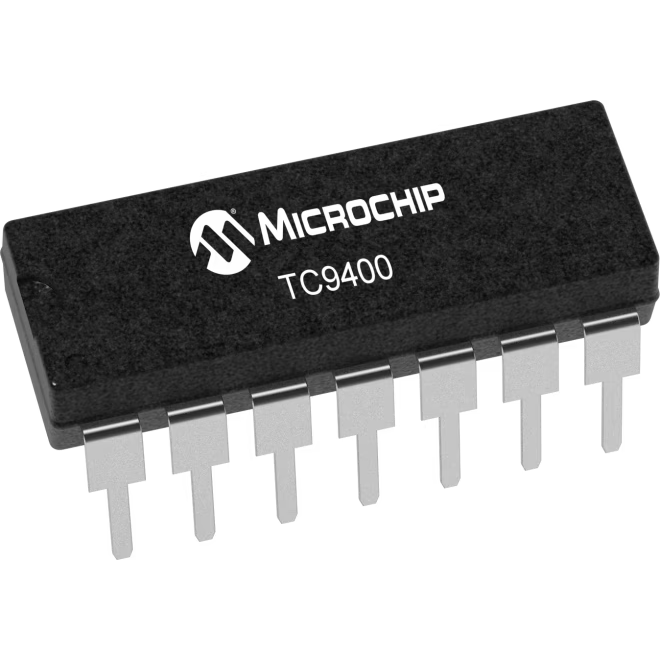

TC9400CPD

VFC/FVC 100kHz 14-Pin PDIP Tube

Microchip Technology

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8542.39.00.90

• Automotive

  No

• PPAP

  No

• Converter Function

  VFC|FVC

• Full Scale Frequency (kHz)

  100

• Linearity Error

  ±0.25%FSR

• Minimum Single Supply Voltage (V)

  8

• Typical Single Supply Voltage (V)

  9|12

• Maximum Single Supply Voltage (V)

  15

• Minimum Dual Supply Voltage (V)

  ±4

• Typical Dual Supply Voltage (V)

  ±5

• Maximum Dual Supply Voltage (V)

  ±7.5

• Power Supply Type

  Single|Dual

• Minimum Operating Temperature (°C)

  0

• Maximum Operating Temperature (°C)

  70

• Supplier Temperature Grade

  Commercial

• Packaging

  Tube

• Mounting

  Through Hole

• Package Height

  3.3

• Package Width

  6.35

• Package Length

  19.05

• PCB changed

  14

• Standard Package Name

  DIP

• Supplier Package

  PDIP

• Pin Count

  14

• Lead Shape

  Through Hole
