Clock Buffers and Drivers

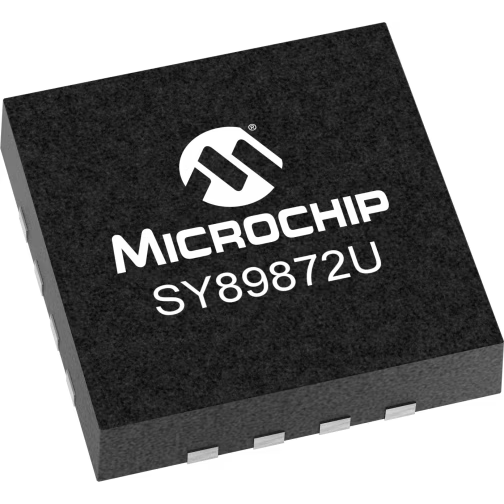

SY89872UMG

Clock Divider/Fanout Buffer 3-OUT 1-IN 1:1/1:2 16-Pin QFN EP Tube

Microchip Technology

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  COMPONENTS

• SVHC

  Yes

• Automotive

  No

• PPAP

  No

• Type

  Clock Divider/Fanout Buffer

• Fanout

  1:1/1:2

• Number of Outputs per Chip

  3

• Maximum Propagation Delay Time @ Maximum CL (ns)

  0.75@2.5V

• Absolute Propagation Delay Time (ns)

  0.75

• Input Logic Level

  CML|HSTL|LVDS|LVPECL

• Output Logic Level

  LVDS

• Minimum Operating Supply Voltage (V)

  2.375

• Typical Operating Supply Voltage (V)

  2.5

• Maximum Operating Supply Voltage (V)

  2.625

• Maximum Quiescent Current (mA)

  110

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Supplier Temperature Grade

  Industrial

• Packaging

  Tube

• Mounting

  Surface Mount

• Package Height

  0.83

• Package Width

  3

• Package Length

  3

• PCB changed

  16

• Standard Package Name

  QFN

• Supplier Package

  QFN EP

• Pin Count

  16

• Lead Shape

  No Lead
