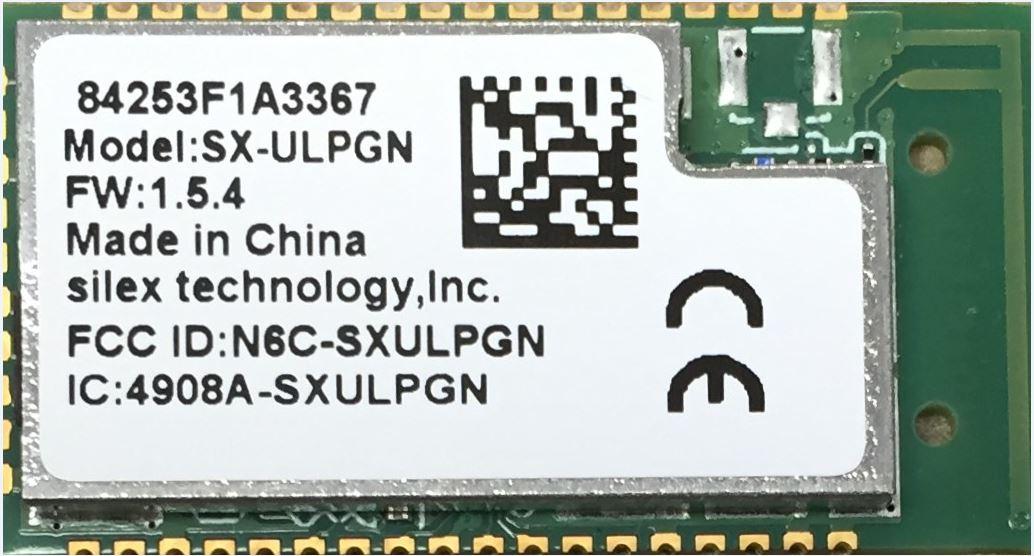

SX-ULPGN-2000-SP

Module 802.11b/g/n 2.472GHz 11000Kbps 46-Pin Sample

Silex Technology America

Product Technical Specifications

• EU RoHS

  Supplier Unconfirmed

• Part Status

  Active

• HTS

  COMPONENTS

• Automotive

  No

• PPAP

  No

• Technology

  IEEE 802.11b/g/n

• Style

  Module

• Modulation Technique

  DBPSK|DQPSK|CCK|BPSK|QPSK|16QAM|64QAM

• Number of Channels

  11|13

• Maximum Data Rate (Kbps)

  11000@b|54000@g

• Band Mode

  Single

• Minimum Operating Frequency (MHz)

  2412

• Maximum Operating Frequency (MHz)

  2472

• Typical Sensitivity

  -95dBm@1Mbps|-89dBm@6Mbps

• Interface

  GPIO/I2C/I2S/JTAG/SPI/UART

• Minimum Operating Supply Voltage (V)

  2.97

• Typical Operating Supply Voltage (V)

  3.3

• Maximum Operating Supply Voltage (V)

  3.63

• Maximum Current Consumption (TX) (mA)

  124

• Maximum Current Consumption (RX) (mA)

  76

• Processing Unit Type

  Microcontroller

• Antenna Mounting

  On Board

• Wi-Fi Compliant

  Yes

• Wi-Fi Direct

  No

• Security

  64bit WEP/128bit WEP/WPA/WPA2/WPS

• IP Version

  IPv4/IPv6

• Minimum Operating Temperature (°C)

  0

• Maximum Operating Temperature (°C)

  70

• Packaging

  Sample

• Mounting

  Surface Mount

• Package Height

  2.6

• Package Width

  16

• Package Length

  30

• PCB changed

  46

• Pin Count

  46
