Switch Rocker

SW3821D

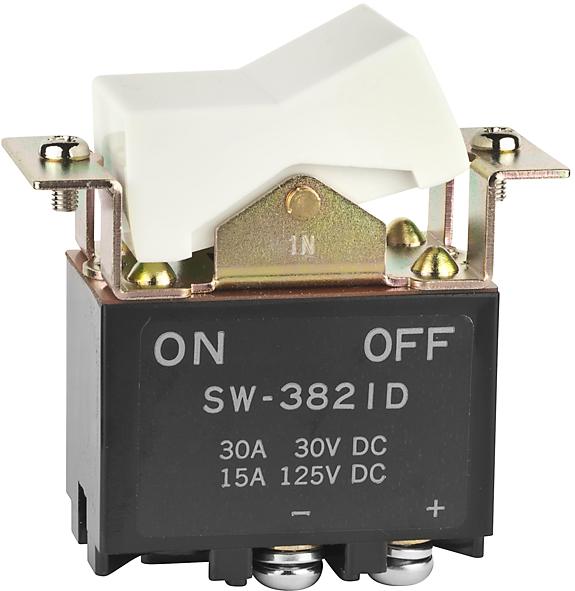

Switch Rocker ON None OFF DPST Screw Lug Rocker 30A 125VDC 50000Cycles

NKK Switches

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.50.90.65

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  No

• PPAP

  No

• Pole Throw Configuration

  DPST

• Switch Configuration

  ON None OFF

• Actuator Style

  Rocker

• Maximum Current Rating (A)

  30@30VDC

• Dielectric Strength

  2000VAC

• Minimum Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  10

• Electrical Life (Cycles)

  25000

• Mechanical Life (Cycles)

  50000

• Actuator Color

  White

• Actuator Length (mm)

  36

• Number of Rows

  2

• Row Spacing (mm)

  12

• Mounting

  Panel Mount

• Termination Style

  Screw Lug

• Number of Terminals

  4

• Terminal Pitch (mm)

  12

• Color

  White

• Body Orientation

  Straight

• Minimum Operating Temperature (°C)

  -10

• Maximum Operating Temperature (°C)

  70

• Body Length (mm)

  56

• Body Depth (mm)

  24

• Product Length (mm)

  56

• Product Depth (mm)

  24

• Product Height (mm)

  57.7

• Actuator Depth (mm)

  22

• Actuator Height (mm)

  13.2
