Switch Rocker

SW3006A

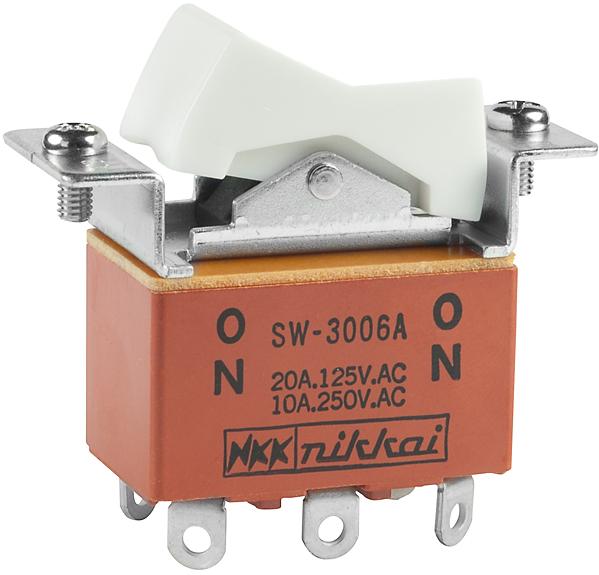

Switch Rocker ON None ON DPDT Solder Lug Rocker 20A 250VAC 30VDC 30000Cycles

NKK Switches

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.50.90.65

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  No

• PPAP

  No

• Pole Throw Configuration

  DPDT

• Switch Configuration

  ON None ON

• Actuator Style

  Rocker

• Maximum Current Rating (A)

  20@125VAC 30VDC

• Dielectric Strength

  2000VAC

• Minimum Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  10

• Electrical Life (Cycles)

  10000

• Mechanical Life (Cycles)

  30000

• Actuator Color

  White

• Actuator Length (mm)

  27

• Mounting

  Panel Mount

• Termination Style

  Solder Lug

• Number of Terminals

  6

• Terminal Length (mm)

  5.7

• Seal Description

  Dust Proof(Silicone Rubber)

• Color

  White

• Body Orientation

  Straight

• Minimum Operating Temperature (°C)

  -10

• Maximum Operating Temperature (°C)

  70

• Body Length (mm)

  45

• Body Depth (mm)

  18.5

• Body Height (mm)

  27.6

• Product Length (mm)

  45

• Product Depth (mm)

  18.5

• Product Height (mm)

  42.9

• Actuator Depth (mm)

  13.5

• Actuator Height (mm)

  9.6
