Motor Controller and Driver ICs

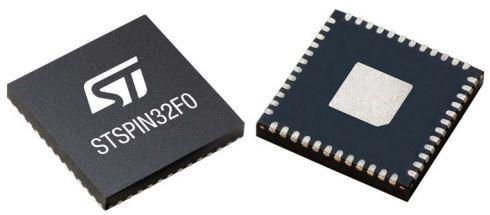

STSPIN32F0

Triple Half Bridge Motor Controller 48-Pin VFQFPN EP Tray

STMicroelectronics

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  COMPONENTS

• Automotive

  No

• PPAP

  No

• Type

  Motor Controller

• Motor Type

  Brushless DC Motor

• Interface Type

  PWM

• Output Configuration

  Triple Half Bridge

• Output Voltage (V)

  3.3

• Maximum Output Current (A)

  18(Min)

• Minimum Operating Supply Voltage (V)

  8

• Operating Supply Voltage Range (V)

  8 to 45

• Maximum Operating Supply Voltage (V)

  45

• Maximum Supply Current (mA)

  2(Typ)

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  125

• Supplier Temperature Grade

  Extended

• Packaging

  Tray

• Mounting

  Surface Mount

• Package Height

  0.95

• Package Width

  7

• Package Length

  7

• PCB changed

  48

• Standard Package Name

  QFP

• Supplier Package

  VFQFPN EP

• Pin Count

  48

• Lead Shape

  No Lead
