Intelligent Power Modules - IPMs

STK554U362A-E

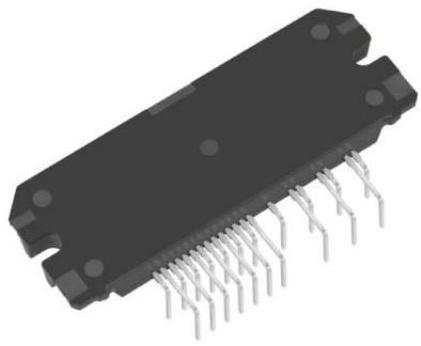

IPM IGBT 600V 10A 21-Pin(21+Tab) SIP Module Tube

onsemi

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Obsolete

• Automotive

  No

• PPAP

  No

• Type

  IGBT

• Configuration

  Hex

• Number of Phases

  Three

• Protection Type

  Over Current/Under Voltage

• Maximum Collector-Emitter Voltage (V)

  600

• Typical Collector-Emitter Saturation Voltage (V)

  1.6

• Maximum Continuous DC Collector Current (A)

  10

• Maximum Isolation Voltage (Vrms)

  2000

• Maximum Collector-Emitter Cut-Off Current (mA)

  0.1

• Maximum Power Dissipation (W)

  30

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  100

• Packaging

  Tube

• Mounting

  Through Hole

• Package Height

  5.7

• Package Width

  22.3

• Package Length

  62

• PCB changed

  21

• Tab

  Tab

• Standard Package Name

  SIP

• Supplier Package

  SIP Module

• Pin Count

  21

• Lead Shape

  Through Hole
