Flash

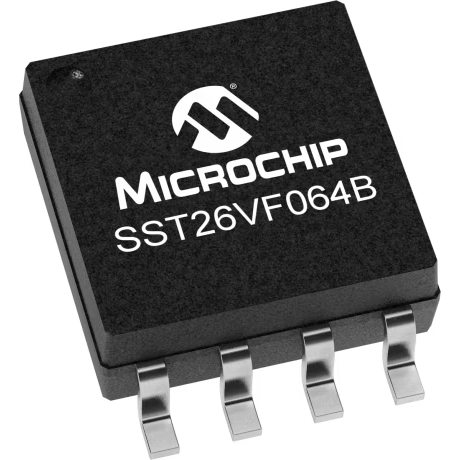

SST26VF064B-104I/SM

NOR Flash Serial (SPI, Dual SPI, Quad SPI) 2.5V/3V/3.3V 64M-bit 64M/32M/16M x 1/2-bit/4-bit 8ns 8-Pin SOIJ Tube

Microchip Technology

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  3A991b.1.a.

• Part Status

  Active

• HTS

  SST26VF064B104ISM

• Automotive

  No

• PPAP

  No

• Cell Type

  NOR

• Chip Density (bit)

  64M

• Architecture

  Sectored

• Boot Block

  Yes

• Block Organization

  Symmetrical

• Location of Boot Block

  Bottom|Top

• Address Width (bit)

  32

• Sector Size

  4Kbyte x 2048

• Page Size

  256byte

• Number of Bits/Word (bit)

  1/2/4

• Number of Words

  64M/32M/16M

• Programmability

  Yes

• Timing Type

  Synchronous

• Max. Access Time (ns)

  8

• Maximum Erase Time (s)

  0.05/Chip

• Maximum Programming Time (ms)

  1.5/Page

• Process Technology

  70nm

• Interface Type

  Serial (SPI, Dual SPI, Quad SPI)

• Maximum Operating Frequency (MHz)

  104

• Minimum Operating Supply Voltage (V)

  2.3

• Typical Operating Supply Voltage (V)

  2.5|3|3.3

• Maximum Operating Supply Voltage (V)

  3.6

• Programming Voltage (V)

  2.3 to 3.6

• Operating Current (mA)

  20

• Program Current (mA)

  25

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Supplier Temperature Grade

  Industrial

• Command Compatible

  Yes

• ECC Support

  No

• Support of Page Mode

  No

• Minimum Endurance (Cycles)

  100000

• Packaging

  Tube

• Mounting

  Surface Mount

• Package Height

  1.87

• Package Width

  5.25

• Package Length

  5.26

• PCB changed

  8

• Standard Package Name

  SO

• Supplier Package

  SOIJ

• Pin Count

  8

• Lead Shape

  Gull-wing
