Connector Headers and PCB Receptacles

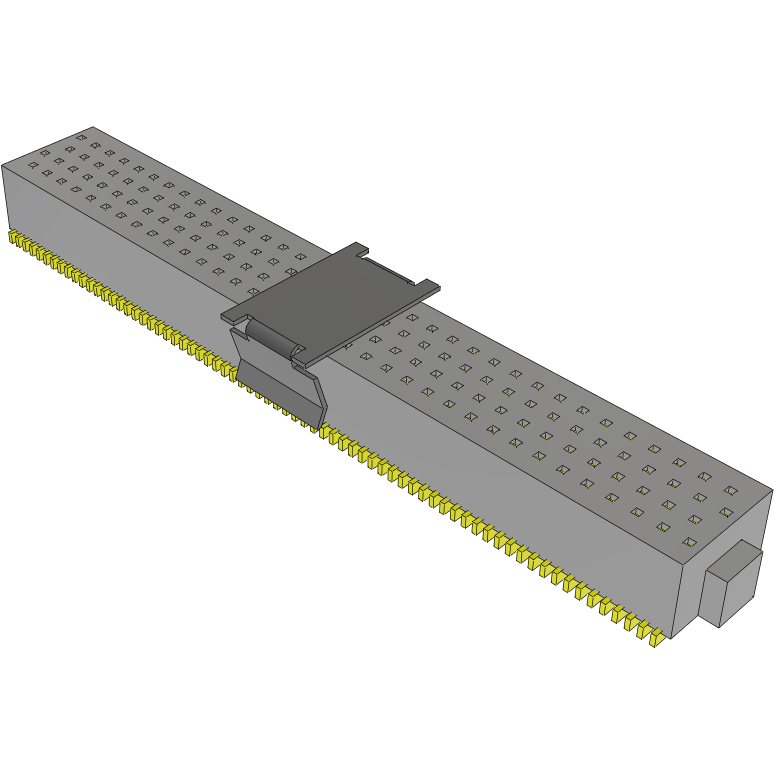

SOLC-135-02-L-Q-P

Conn Socket Strip RCP 140 POS 0.635mm Solder ST SMD Tube

Samtec

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• Automotive

  No

• PPAP

  No

• Type

  Socket Strip

• Gender

  RCP

• Number of Contacts

  140

• Number of Rows

  4

• Termination Method

  Solder

• Terminal Pitch (mm)

  0.635

• Body Orientation

  Straight

• Polarization Type

  Dual Key

• Row Spacing (mm)

  1.27

• Maximum Current Rating (A)

  3.9/Contact

• Maximum Voltage Rating

  188VAC|266VDC

• Maximum Contact Resistance (mOhm)

  10

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• Mating Cycle (Cycles)

  100

• Packaging

  Tube

• Product Length (mm)

  47

• Product Depth (mm)

  7.11

• Product Height (mm)

  4.62

• Mounting

  Surface Mount
