Transient Voltage Suppressors - TVS Diodes

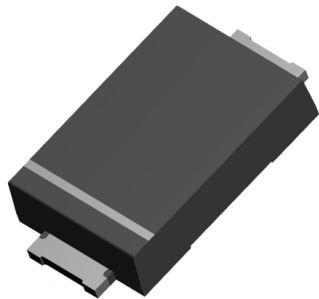

SMA4F13A

Diode TVS Single Uni-Dir 13V 400W 2-Pin SMA flat T/R

STMicroelectronics

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Obsolete

• HTS

  8541.10.00.80

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  No

• PPAP

  No

• Configuration

  Single

• Direction Type

  Uni-Directional

• Number of Elements per Chip

  1

• Minimum Breakdown Voltage (V)

  14.4

• Maximum Clamping Voltage (V)

  27.2

• Maximum Reverse Stand-Off Voltage (V)

  13

• Maximum Peak Pulse Current (A)

  18.6

• Maximum Reverse Leakage Current (uA)

  0.2

• Test Current (mA)

  1

• Peak Pulse Power Dissipation (W)

  400

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  175

• Supplier Temperature Grade

  Industrial

• Packaging

  Tape and Reel

• Mounting

  Surface Mount

• Package Height

  1.1(Max)

• Package Width

  2.9(Max)

• Package Length

  4.6(Max)

• PCB changed

  2

• Standard Package Name

  DO

• Supplier Package

  SMA flat

• Pin Count

  2
