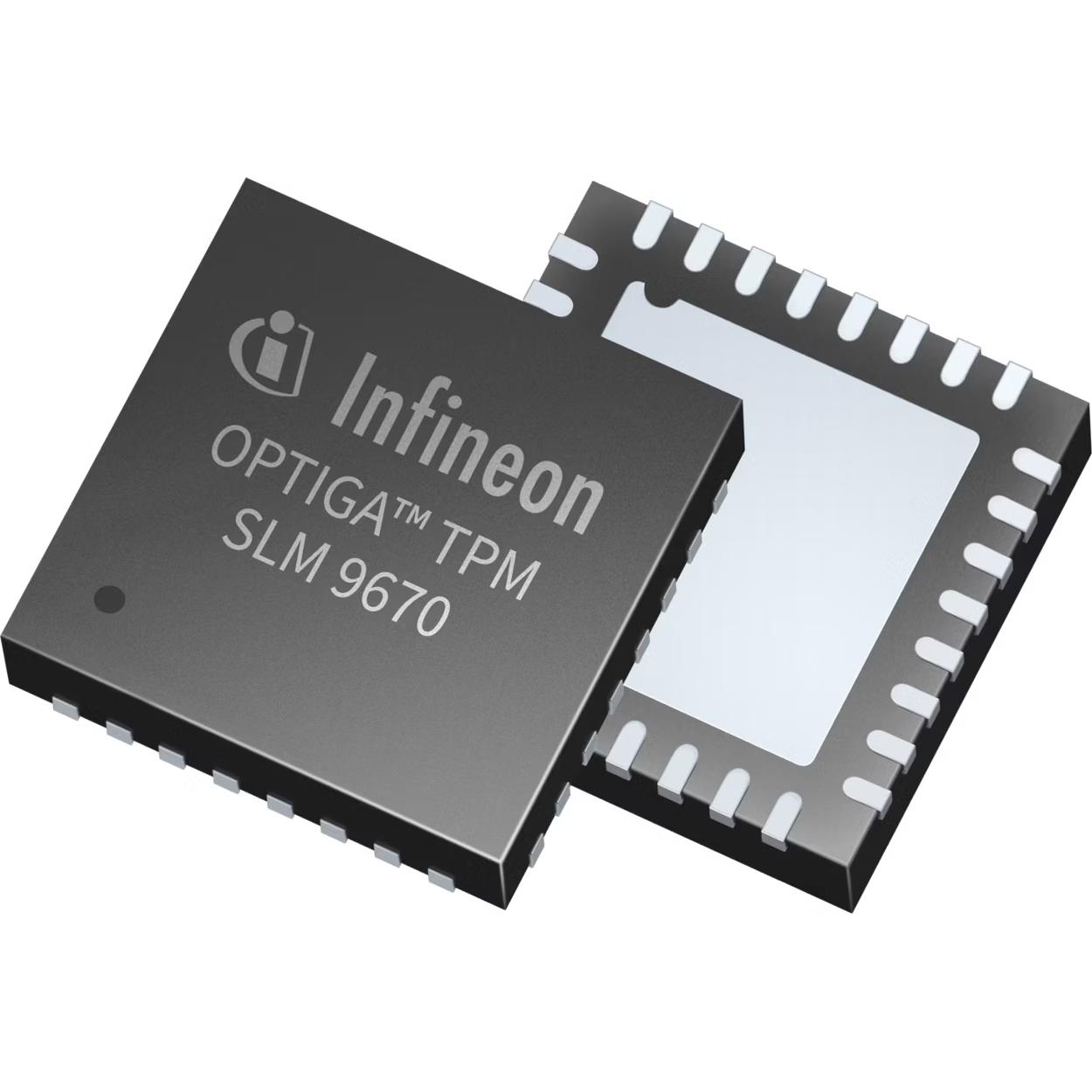

SLM9670AQ20FW1311XTMA1

Secure MCU 16bit OPTIGA™ TPM CISC 7KB ROM 1.8V/3.3V 32-Pin VQFN EP T/R

Infineon Technologies AG

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  3A991a.2.

• Part Status

  NRND

• HTS

  8542.39.00.90

• Automotive

  No

• PPAP

  No

• Family Name

  OPTIGA™ TPM

• Instruction Set Architecture

  CISC

• Maximum CPU Frequency (MHz)

  43

• Data Bus Width (bit)

  16

• Program Memory Type

  ROM

• Program Memory Size

  7KB

• Programmability

  Yes

• Key Size

  128bit@AES

• Number of Keys

  10

• No. of Timers

  1

• Interface Type

  SPI

• UART

  0

• USB

  0

• SPI

  1

• I2C

  0

• I2S

  0

• CAN

  0

• Ethernet

  0

• Parallel Master Port

  No

• Real Time Clock

  No

• Minimum Operating Supply Voltage (V)

  3, 1.65

• Typical Operating Supply Voltage (V)

  3.3, 1.8

• Maximum Operating Supply Voltage (V)

  3.6, 1.95

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  105

• Packaging

  Tape and Reel

• Mounting

  Surface Mount

• Package Height

  0.85(Max)

• Package Width

  5

• Package Length

  5

• PCB changed

  32

• Standard Package Name

  QFN

• Supplier Package

  VQFN EP

• Pin Count

  32

• Family/Series

  SLM9670AQ20

• ALIAS

  SP002676674

• ROHS Version

  2011/65/EU, 2015/863

• Quantity Packaging

  5000

• MSL

  1
