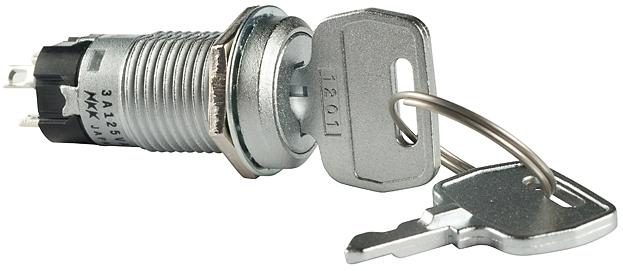

NKK SwitchesSK12AAW01Switch KeyLock
Switch Key Lock ON None ON SPDT 90° Flat Key 3A 125VAC Solder Lug 30000Cycles Panel Mount
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.65 | |
| Automotive | No |
| PPAP | No |
| Low Security | |
| SPDT | |
| ON None ON | |
| Flat Key | |
| 3@125VAC | |
| 125 | |
| 1000VAC | |
| 1000 | |
| 10 | |
| 10000 | |
| 30000 | |
| 90 | |
| Panel Mount | |
| Solder Lug | |
| 2 | |
| 4.5 | |
| Round | |
| Terminals | |
| Epoxy | |
| 1|3 | |
| Phenolic Resin | |
| Zinc Alloy | |
| Straight | |
| -25 | |
| 70 | |
| 13 | |
| 9.5 | |
| 14 | |
| 14 | |
| 30 |
With this low security SK12AAW01 Keylock switch from NKK Switches, you can easily keep your system safe with just a turn of the key. This device has a maximum current rating of 3 A @ 125VAC. It has a SPDT configuration. This switch key has a minimum operating temperature of -25 °C and a maximum of 70 °C. The SK12AAW01 switch key has a solder lug termination style. The maximum AC voltage rating is 125 VAC. This product is 14 mm long, 30 mm tall and 14 mm deep.
