AC to DC Power Supplies

SCS120PW48

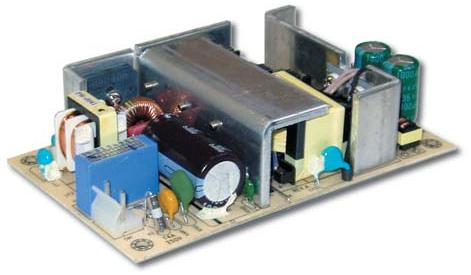

AC/DC Power Supply Single-OUT 48V 2.5A 120W 8-Pin

TDK-Lambda

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Obsolete

• HTS

  8504.40.95.20

• Automotive

  No

• PPAP

  No

• Type

  Regulated

• Style

  Open Frame

• Input/Output Type

  AC/DC

• Number of Outputs

  1

• Output Type

  Fixed

• Output Voltage (V)

  48

• Output Current (A)

  2.5

• Output Power (W)

  120

• Minimum AC Input Voltage (V)

  90

• Maximum AC Input Voltage (V)

  264

• Minimum Isolation Voltage

  3000VAC

• Load Regulation

  2%

• Maximum Input Current (A)

  2.5

• Input Frequency (Hz)

  47 to 63

• Efficiency (%)

  85(Typ)

• Configurable

  No

• Input Connector Type

  Pin Terminal Block

• Output Connector Type

  Pin Terminal Block

• Power Indicator

  No

• Ripple and Noise

  1%

• Medical

  No

• Minimum Operating Temperature (°C)

  0

• Maximum Operating Temperature (°C)

  40

• Product Weight (g)

  300

• Mounting

  Screw

• Package Height

  32.2(Max) mm

• Package Width

  76.2 mm

• Package Length

  127 mm

• PCB changed

  8

• Pin Count

  8
