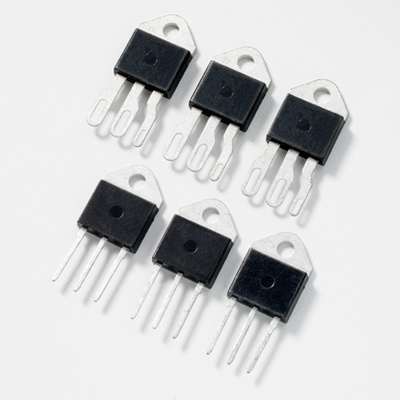

LittelfuseS4065KTPSilicon Controlled Rectifiers - SCRs
Thyristor SCR 400V 950A 3-Pin(3+Tab) TO-218AC Tube
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| 650(Min) | |
| 200 | |
| 2 | |
| 50 | |
| 950 | |
| 80 | |
| 400 | |
| 1.8@130A | |
| 400 | |
| 41 | |
| 0.02 | |
| No | |
| -40 | |
| 125 | |
| Mounting | Through Hole |
| Package Height | 12.62(Max) mm |
| Package Width | 4.78(Max) mm |
| Package Length | 16(Max) mm |
| PCB changed | 3 |
| Tab | Tab |
| Standard Package Name | TO |
| Supplier Package | TO-218AC |
| 3 | |
| Lead Shape | Through Hole |
Keep your scr S4065KTP thyristor manufactured from Littelfuse on by applying a forward-biased voltage to it. This device has a surge current rating of 950 A. In order to ensure parts aren't damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its repetitive peak forward blocking voltage is 400 V, while its repetitive peak reverse voltage is 400 V. This SCR thyristor has a minimum operating temperature of -40 °C and a maximum of 125 °C.
