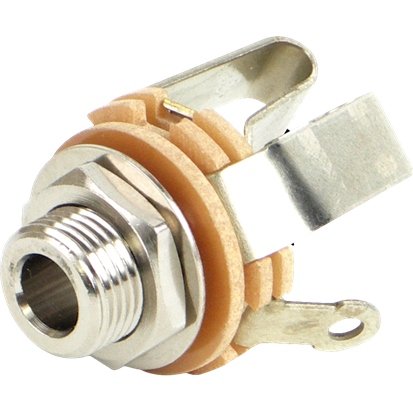

Connector Audio and Video

S12B

Conn Phone Jack RCP 3 POS Solder Cup ST Panel Mount 3 Terminal 1 Port

Switchcraft

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.5050

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  No

• PPAP

  No

• Type

  Phone Jack

• Gender

  RCP

• Number of Contacts

  3

• Number of Terminals

  3

• Number of Ports

  1

• Termination Method

  Solder Cup

• Body Orientation

  Straight

• Maximum Current Rating (A)

  1

• Maximum Voltage Rating

  25VDC

• Insulation Resistance (MOhm)

  10000

• Maximum Contact Resistance (mOhm)

  30

• Minimum Operating Temperature (°C)

  -20

• Maximum Operating Temperature (°C)

  65

• Mating Cycle (Cycles)

  10000

• Product Length (mm)

  19.05

• Product Depth (mm)

  32.41

• Mounting

  Panel Mount

• Housing Material

  Plastic

• Contact Material

  Copper Alloy
