Connector Circular

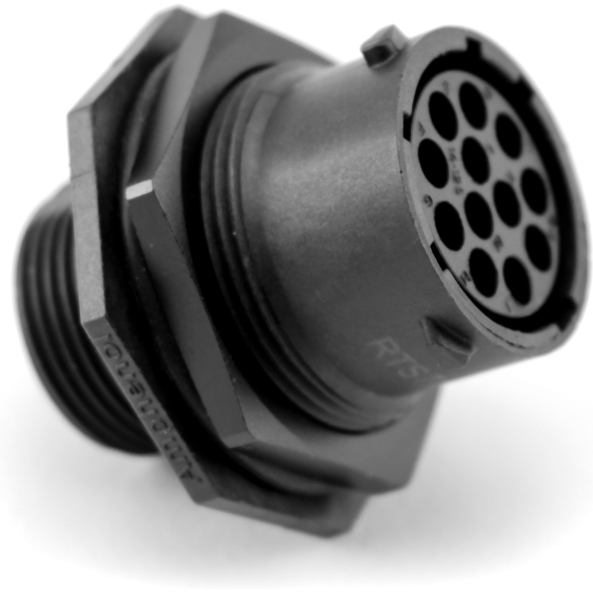

RTS714N12S03

Conn Circular SKT 12 POS Crimp ST Panel Mount 12 Terminal 1 Port

Amphenol

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.20

• Automotive

  No

• PPAP

  No

• Type

  Circular

• Gender

  RCP

• Mounting

  Panel Mount

• Body Orientation

  Straight

• Polarization

  N

• Number of Ports

  1

• Number of Contacts

  12

• Number of Terminals

  12

• Contact Gender

  SKT

• Termination Method

  Crimp

• Shell Size / Insert Arrangement

  14-12

• Wire Size (AWG)

  14-26

• Less Contact

  Yes

• Shell Material

  Thermoplastic

• Maximum Current Rating (A)

  13

• Maximum Voltage Rating

  500VDC|500VAC

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  125

• IP Rating

  IP67

• Insulation Resistance (MOhm)

  5000

• Mating Style

  Bayonet Lock

• Mating Cycle (Cycles)

  500

• Product Length (mm)

  33.4

• Product Depth (mm)

  35
